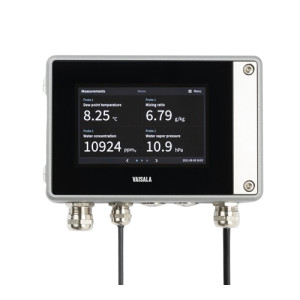

INDIGO510 A1N2A1NXAN | Vaisala | Humidity

HUMIDITY TRANSMITTER

Brand:Vaisala

MPN:INDIGO510 A1N2A1NXAN

SKU:INDIGO510 A1N2A1NXAN

List Price:

$3,324.00

Today's Price:

$1,728.48

product datasheet

installation instructions

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Accuracy

Mount

Wall

Output Signal

Modbus

Power Requirements

24 VAC/VDC

product series specifications

Accuracy:

HMW Series: Humidity ±3%, 0 to 70% RH, 50° to 86°F (10° to 30°C)

TMW Series: Temperature ±0.9°F (± 0.50°C)

Thermal Effect: Temperature compensated with less than 0.005% per °F (0.01% per °C)

Supply Voltage:

HMX82/TMX82: 20 to 28 VDC

HMX83/TMX83: 18 to 35 VDC/24 VAC ±20%

Signal Output:

HMXW82/TMX82: 4-20 mA @ 600O (loop powered)

HMX83/TMX83: 0 to 10 VDC @ 10kO

Measurement Range:

Humidity: 0 to 100% RH

Temperature: 23° to 131°F (-5° to 55°C)

Sensing Technology:

Humidity: Replaceable Vaisala Intercap®

Temperature: Digital Temperature Sensor

Operating Temperature: -40° to 140°F (-40° to 60°C)

Operating Humidity: 0 to 100% RH non-condensing

Enclosure Rating: NEMA 1, ABS/ Polycarbonate UL-V0 approved, IP30

Wiring Terminations: Terminal block (22 to 16 AWG)

Weight:

Wall: 0.25 lb (0.11 Kg)

Duct: 0.65 lb (0.3 Kg)

Approvals: CE (EN61326-1)

Warranty: 2 years

product series features

Room and Duct models
3% accuracy
4-20mA and 0-10V models
Interchangeable humidity sensor
Two-year warranty
No recalibration required
Temperature and humidity outputs

more information & related documents

Series Description

The Vaisala HMW/D8X0 Series room and duct humidity and temperature transmitter features the interchangeable INTERCAP® sensor and is designed for use in energy management systems in buildings. They combine excellent stability with reliable operation. The HMW/D8X Series is easy to install, requires no recalibration if the sensor is changed and is insensitive to dust as well as to most chemicals. This means great savings in overall maintenance costs. The HMW/D80 Series transmitters are available in eight models: HMW/D82 and HMW/D83 transmitters measure both humidity and temperature while the TMW/D82 and TMW/D83 measure temperature only. HMW/D80 Series is available in both 2- and 3-wire and 4-20 mA and voltage analog signals.

Kele Description

HUMIDITY TRANSMITTER

Manufacturer

Vaisala
