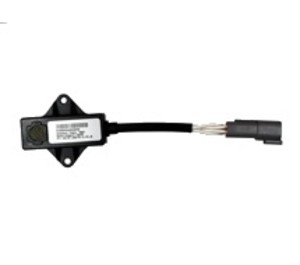

* product series image displayed

T9501 | Amphenol | Humidity

SENSOR, TEMP/RH,HARSH ENV,SCREW/FLANGE MOUNT, 2% ACCURACY,MODBUS OUTPUT

Brand:Amphenol

MPN:T9501

SKU:T9501

List Price:

$512.00

Today's Price:

$266.24

Lead time of 8 days. Chat with Kele experts now

product specifications

Accuracy

Output

4 - 20 mA

Power Requirements

24 VAC/VDC

Mount

Multi

product series specifications

Method: Capacitive polymer RH Sensor, PTAT (Proportional to Absolute) integrated temperature sensor

Operating Conditions: -30°C to 70°C; 0% to 100% Relative Humidity (RH) Non-Condensing

Storage Conditions: -40°C to 85°C

Output Modes: RS485 MODBUS - Configurable, 115,200 baud 8E1 Fault Protection (SN65HVD1781)

Power Supply Requirements: 8-32 VDC (12 VDC) with polarity protection

Current Consumption: <10mA average typical (bus Rx mode);70 mA Peak typical (bus Tx mode /Heat mode)

Cable: Outer Diameter: 8.00 ± 0.20mm, 4 Core, unshielded.

Length: 0.09m (0.3 ft)

product series features

Fully calibrated and temperature compensated
Water resistant (IP 67)
Digital RS485 Modbus communication
Precision and accuracy (±2% RH at 20% to 80%, ±0.5°C Temperature, 14 bit resolution)
Low current consumption
Reliable in harsh environments
“Heater Mode” capability for condensation recovery

more information & related documents

Series Description

<p>Telaire T9501 Humidity & Temperature Sensor provides cost-effective humidity and temperature sensing via MODBUS communication protocol for virtually any type of application. Designed to withstand challenging environments, the IP67 rated transmitter utilizes an individually calibrated and tested ChipCap 2 sensor and is ready to integrate into control/monitoring systems without further calibration or temperature compensation.</p>

Kele Description

SENSOR, TEMP/RH,HARSH ENV,SCREW/FLANGE MOUNT, 2% ACCURACY,MODBUS OUTPUT

Manufacturer

Amphenol
