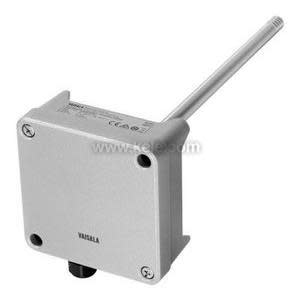

HMD65 | Kele | Humidity

Duct Humidity and Temperature Sensor, 1.5%, 2 analog outputs, 0-10 VDC, Digital Output, BACnet MS/TP, Modbus RTU

Brand:Kele

MPN:HMD65

SKU:HMD65

List Price:

$1,683.00

Today's Price:

$875.16

41 in stock

product specifications

Accessory

DCPA-1.2, DCP-1.5-W, UR

Enclosure Rating

IP66, NEMA 4X

Accuracy

1.5%

Application

Humidification, Dehumidification, Supply, Discharge, Return Air, Economizers, Clean Rooms, Data Centers, Process Control, Schools, Hospitals, Office Buildings

Housing Material

Poly

Mount

Duct

Output

0 - 10 VDC

Probe Length

9.80 in

Sensor Element

1K Platinum RTD 385

Temperature Range

-40 to 176 °F (-40 to 80 °C)

Communication Protocol

Modbus, BACnet

Power Requirements

24 VAC/VDC

product series features

Comes with NIST certificate
Full 0% to 100% RH measurement
State-of-the-art replaceable sensor technology

more information & related documents

Series Description

The duct mounted HMD60 series HUMICAP transmitters are designed for light industrial applications and demanding HVAC applications such as museums, cleanrooms, and laboratories.<br>

Kele Description

HUMICAP HUM/TEMP TRANS MODBUS, RTU BACNET

Manufacturer

Kele
