4365106 | Wika Instrument Corporation | Hazardous Locations
Explosion-protected Pressure 0-3000psi 4-20mA
Brand:Wika Instrument Corporation
MPN:4365106
SKU:E10APBQNDZ2X67Z
List Price:
$910.00
Today's Price:
$473.20
Log in for customized pricingproduct specifications
Measurement
PSI
Output
4 - 20 mA
Range
0 - 3,000 psi
Type
Transmitter
product series specifications
Supply Voltage: 10-30 VDC
Accuracy: ±0.25% full scale
Output: 4-20 mA @ 700 O
Overpressure: Proof 170%, Burst 580%
Operating Temperature: -22° to 212°F (-30° to 100°C)
Response time: =1 ms
Material of Construction: Stainless Steel
Process Connection: 1/2" NPT male
Area: Class I, Division 1, Groups A, B, C, D
Entity Parameters: Vmax = 30VDC, Imax = 100 mA, Ci= 22 nF, Li = 0.1 mH
Dimensions: 4.1" Long x 1.1" Diameter (10.5 x 2.7 cm) with 6' (1.8 m) whip
Approvals: FM, CSA
Weight: 1.0 lb (0.45 kg)
Warranty: 1 year
product series features
- Class I, Division 1, Groups A, B,C, D;
- 0.25% accuracy, all ranges
- 4-20 mA, loop powered
- Ranges from 100-3000 psig (690-20,685 kPa)
more information & related documents
Series Description

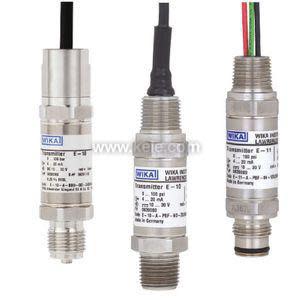

The Wika E10A Series explosion proof pressure transmitter is exceptionally stable and is virtually unaffected by shock, vibration, or orientation. These explosion proof transmitters are ideal for monitoring pressures in explosive atmospheres.
Kele Description
XP PRESSURE 0-3000PSI 4-20MA
Manufacturer
Wika Instrument Corporation
Related Documents
E10A Series Installation Manual
