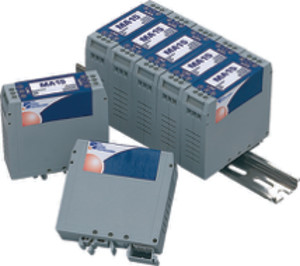

* product series image displayed
MA15/D/1/SI | Cooper Crouse-Hinds MTL | Hazardous Locations
SURGE PROTECTION 15A, 120V, DIN MOUNT, FILTER/STATUS INDICATION
Brand:Cooper Crouse-Hinds MTL
MPN:MA15/D/1/SI
SKU:MA15/D/1/SI
product specifications
Mount
DIN-Rail
Output
4 - 20 mA
Type
Surge Protection
Input
120 VAC
product series specifications
- †Approvals:
- †UL 1449 , Hazardous Locations;†Class I, Division 2;†Groups A, B, C and D†
- †Warranty:
- 10 year limited warranty
- †Nominal Surge current:
- †3kA (8/20µs)
- †Maximum Surge Current:
- †12kA (8/20µs)
- †Maximum leakage current:
- †<0.3mA
- †Maximum continuous operating current;(UL-approved):
- †120V @ 15A; 240V @ 10A series connection; Unlimited Amps in parallel
- †Maximum continuous operating current;(Non-approved):
- †120V @ 15A; 240V @ 15A series connection; Unlimited Amps in parallel
- †Maximum attenuation (typical):
- †-55dB @ 100MHz
- †Ambient temperature limits:
- †‚Äì40°F to +185°F (‚Äì40°C to +85°C) (working)
- †Humidity:
- †95% RH (non-condensing)
- †Casing:
- †Polymide-PA, with G- or T-section;(Top-hat) DIN-rail mounting foot UL94-V0
- †Connectors:
- †Screw terminal
- †Terminals:
- †0.1 inch= (2.5mm=) 12 AWG
- †Mounting:
- †G- or T-section (‚ÄòTop-hat‚Äô) or 1.4 inch (35mm) DIN rail
- †Weight:
- †3.53oz (100g)
- †Dimensions:
- †79mm x 25mm x 90.5mm
- †LED Indication:
- †Green LED on Protection present; Green LED off Internal failure
- †Working Voltage:
- †MA15/D/1/SI:
- †120VAC, 47-63Hz 140VDC
- †MA15/D/1TT/SI:
- †120V, 47-63Hz 140V
- †MA15/D/2/SI:
- †240V, 47-63Hz 280V
- †MA15/D/2TT/L:
- †240V, 47-63Hz 280V
product series features
- 12kA surge protection and RFI filtering
- Protects panel loads up to 15 Amps in series, unlimited Amps in parallel
- Suitable for AC or DC application
- Thermal and short circuit protection
- LED status indication feature
- 10 year product warranty
- UL1449 4th Edition
more information & related documents
Series Description
The MA15 range of surge protection devices protects electronic equipment and computer networks against the effects of 'noise pollution' induced in power supplies. MA15 units 'clean up' the effects of industrial noise and surges caused by lightning, switching devices, thyristor controls, transmission system overloads and power-factor correction circuits.
Kele Description
SURGE PROTECTION 15A, 120V, DIN MOUNT, FILTER/STATUS INDICATION
Manufacturer
Cooper Crouse-Hinds MTL
