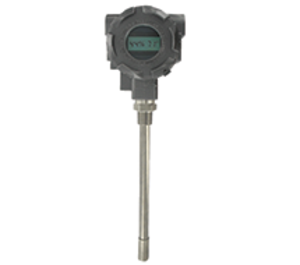

HHT-IT-LCD | Dwyer Instruments | Hazardous Locations
IS 10IN RH XMTR TEMP XMTR -40/140F DISPLAY
Brand:Dwyer Instruments
MPN:HHT-IT-LCD
SKU:HHT-IT-LCD
List Price:
$3,651.00
Today's Price:
$1,898.52
Log in for customized pricingproduct specifications
Accuracy
2%
Output
4 - 20 mA
Type
Intrinsically Safe
Power Requirements
24 VAC/VDC
product series specifications
Supply Voltage:
Explosion proof: 16.5 to 28 VDC
Intrinsically Safe: 9.5 to 28 VDC
Accuracy: ±2% RH from 10 to 90% RH
Signal Output (1 or 2): 4-20mA, 375O @ 24VDC (-Eu)
Entity Parameters: Vmax=28V, Imax= 100mA, Ci= 62nF, Li= 7.7 µH, Pi= 651mW
Area:
Explosion proof: Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1
Intrinsically Safe: Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1
Response Time: 15 seconds
Sensor Type:
RH: Capacitive
Temperature: Solid state
Conduit Connection: 1/2" FNPT
Mounting: Duct probe: 1/2" MNPT
Display: LCD Display
Enclosure Rating: NEMA 4X, Aluminum
RH Sensor Range: 0% to 100% RH
Temperature Sensor range: -40° to 140°F (-40° to 60°C)
Wiring: Terminals
Weight: 2.5 lb (1.1 Kg)
Approvals: FM, CE
Warranty: 1 year
product series features
- Available with digital display
- Intrinsically safe with KFD0-SCS-Ex1.55 barrier
more information & related documents
Series Description
The Dwyer HHT Series explosion proof/intrinsically safe humidity transmitter is designed for rugged industrial use. Approved by FM for hazardous location, this system provides safe, reliable, and accurate humidity and/or temperature measurement with 4-20 mA outputs. Two models have a digital display.
Kele Description
IS 10IN RH XMTR TEMP XMTR -40/140F DISPLAY
Manufacturer
Dwyer Instruments
Related Documents
HHT Installation Manual
