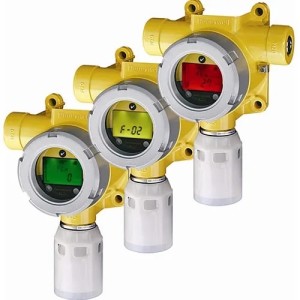

SPXCDULNO1M | Honeywell Analytics | Hazardous Locations
XP UL/CSA O2 25.0%/VOL 4-20MA 3 RLY MODBUS
Brand:Honeywell Analytics
MPN:SPXCDULNO1M
SKU:SPXCDULNO1M
List Price:
$5,333.00
Today's Price:
$2,718.56
Log in for customized pricingproduct specifications
Application Type
O2
Housing Material
Aluminum
Output
4 - 20 mA
Type
Transmitter
Communication Protocol
Modbus
Input
24 VDC
product series specifications
Supply Voltage: 16 to 32 VDC @ 208.3 mA
Operating Temperature: -40° to 149°F (-40° to 65°C)
Conduit Connection: 2 x 3/4" NPT
Enclosure Rating: NEMA 4, IP66; Housing: Epoxy painted aluminum alloy LM25; Sensor: stainless steel
Mounting: Integral mounting plate with 4 x mounting holes suitable for M8 bolts
Communication: RS485, MODBUS RTU
Inrush Current: 800 mA @ 24 VDC maximum
Output Current: 4 - 20 mA sink or source
Relay Output: 3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energized (programmable). Alarm relays default normally open/de-energized. Fault relay default normally open/energized
Terminals: 15 x screw terminals
Wire Size: 20 to 14 AWG
Dimensions: 8.9"H x 6.5"W x 3.9"D (2.25 x 16.4 x 9.9 cm)
Weight: 4.4 lb (2 Kg)
Approvals: UL File #E186567, CE
Warranty: 1 Year
product series features
- User friendly and intuitive tri-colored backlit display with digits, bar graph, and icons
- Fully configurable via magnetic switches
- Selectable sink or source 4-20 mA output
- Built in Alarm and Fault relays
- MODBUS communications for remote diagnostics/configuration
- Removable plug in display module provides easy access to terminal area
- Integral mounting bracket
- 2 x M20 or 3/4 in. NPT cable/conduit entries
- Epoxy painted aluminum alloy housing
- Class I, Division 1 Groups B, C, and D; Class I, Division 2, Groups B, C, and D; Class II, Division 1 Groups E, F, and G; Class II, Division 2, Groups F and G
more information & related documents
Series Description
The Honeywell Analytics XCD Series explosion proof gas monitor/transmitter provides comprehensive monitoring of flammmable, toxic, and oxygen gas hazards in potentially explosive atmospheres. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces routine maintenance time and costs. The XCD series is suitable for both indoor and outdoor use.
Kele Description
XP UL/CSA O2 25.0%/VOL 4-20MA 3 RLY MODBUS
Manufacturer
Honeywell Analytics
Related Documents
Honeywell-SensepointXCD-Datasheet
