* product series image displayed

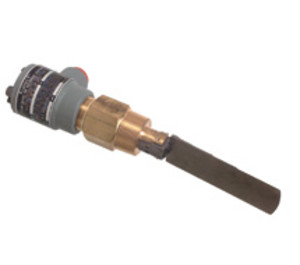

V4-2-U | Dwyer Instruments | Hazardous Locations

EXPLOSIONPROOF FLOW SWITCH 10A SPDT 250VAC

Brand:Dwyer Instruments

MPN:V4-2-U

SKU:V4-2-U

List Price:

$1,522.00

Today's Price:

$791.44

catalog page

Lead time of 6 days. Chat with Kele experts now

product specifications

Measurement

Multi

Mount

Insertion

Type

Liquid/Gas

Input

120 VAC

product series specifications

Limits: Temperature: -4°F to 275°F (-20°C to 135°C)

Operating Pressure: 1000 psig (6900 kPa)

Relay Output: SPDT, 10A @ 125/250 VAC

Installation: Within 5 degrees of vertical

Area: Explosion proof Class I, Division 1, Group C, D; Class II, Division 1, Groups E,F,G

Dimensions: 13-1/2" (34.3 cm) overall length; 6-3/4" (17.1 cm) top of cover to bottom of threads

product series features

Explosion-proof construction
Stainless steel vanes
Accommodates pipe sizes 1-1/2 in. and up
Magnetically actuated
CE, CSA, and UL listed; FM approved
1-1/2 in. NPT mounting
Class I Division 1 Groups C, D;
Class II Division 1 Groups E, F, G

more information & related documents

Series Description

The Dwyer Model V4-2-U explosion proof flow switch is a dependable solution for protecting against low flow conditions in pipelines for liquids, gases, and flowing solids.

Kele Description

EXPLOSIONPROOF FLOW SWITCH 10A SPDT 250VAC

Manufacturer

Dwyer Instruments
