MP1212 | Kele | Hazardous Locations
PANEL FOR EJB12126
Brand:Kele
MPN:MP1212
SKU:MP1212
List Price:
$298.00
Today's Price:
$154.96
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 7/9
Housing Material
Copper-Free Aluminum
Measurement
12 x 12 in
Type
Mounting Plate
product series specifications
Supply Voltage: 24VAC or 12VAC (See ordering)
Control Signal: (See ordering)
Conduit Opening: Two, 3/4" NPT
Assembly: Factory only
Materials Of Construction: Cast aluminum, bolted cover enclosure
Area: Explosionproof Class I, Division 1, Groups C, D; Class II, Division 1, Groups E, F, G
Step Position: Red Dial Pointer
Dimensions:
Actuators (only): (not to exceed) 9 1/2"H x 8.25"W x 11"D (22.9 x 21 x 28 cm)
Drive Shaft: 1/2" dia (1.27 cm), 0.93" L (2.38 cm)
Weight: varies per model
Approvals: UL (actuator only), CSA (assembly)
Warranty: 2 years
product series features
- Class I, Division 1, Groups C, D; Class II, Division 1, Groups E, F, G
- Full range of approved actuators
- Approved for valves or dampers
- Stem position indicator
more information & related documents
Series Description

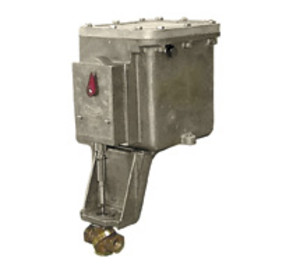

The Schneider Electric MA8, MC6/7, and MP6/7 Series explosion proof actuator enclosures are designed for installation in a hazardous environment. Each of these actuators are factory assembled to order. The enclosure is a cast aluminum housing and bolted cover with explosion proof ratings for Class I, Division 1, Groups C, D and Class II, Division 1, Groups E, F, G. They are for use with any damper with appropriate linkage and with Schneider Electric globe valve sizes 1/2 in. through 2in. , two- or three-way.
Kele Description
PANEL FOR EJB12126
Manufacturer
Kele
