654 | Tekmar Control Systems | Gas & Specialty Sensors

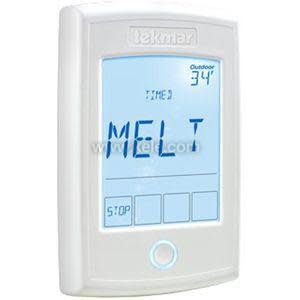

Snow Ice Controller For T090
Brand:Tekmar Control Systems
MPN:654
SKU:654
List Price:
$2,586.00
Today's Price:
$1,344.72
Log in for customized pricingproduct specifications
Display
No
Application
Energy Management,Stadiums,Transportation,Emergency,Research Labs,Agriculture
product series specifications
Supply Voltage: 24 VAC @ 12 VA
Output: Resistance
Wiring Terminations: 65' (20 m) 18 AWG, 5 conductor
Operating Temperature: -30° to 170°F (-34° to 77°C)
Dimensions:
Sensor: 3.4" Dia. x 1.8"D (8.7 x 4.5 cm)
Socket: 3.5" Dia. x 3.8"D (7.9 x 9.7 cm)
Approvals: CE
Weight: Sensor: 4.4 lbs. (2 kg), Socket: 1.5 lbs. (0.7 Kg)
Warranty: 2 years
product series features
- Mounts in Slab
- Long cable 65 ft. (20 m) no need for splicing
more information & related documents
Series Description
The Tekmar Control Systems T09X Series Snow/Ice Sensor provides reliable snow and ice detection and control for commercial applications. The T090 sensor is designed to be mounted in the T091 socket and sit flush with the slab. The sensor measures the slab temperature, surface temperature and sensor surface moisture level.
Kele Description
SNOW ICE MELTING CONTROLLER
Manufacturer
Tekmar Control Systems
Related Documents
T090X Installation Manual
