C48-S-SPAN | Comptus | Gas & Specialty Sensors

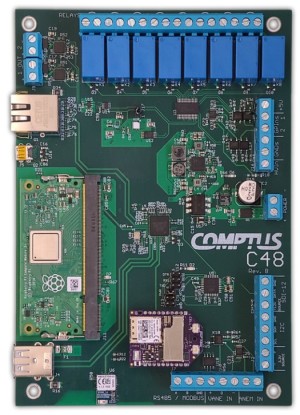

ENVIRONMENTAL MULTI SENSOR CONTROLLER, WIND SPEED SUB PANEL, 8 ALARM RELAYS, NO ENCL, WEB ACCESS
Brand:Comptus
MPN:C48-S-SPAN
SKU:C48-S-SPAN
product series specifications
Operating Power: 12-30 VDC
Power Consumption: 2W, 3.5W Peak With all Alarms Engaged - 3.5W, 5W Peak
Operating Conditions: Temperature (Electronics) - -20ºC to 70ºC; Temperature (Sensors) - -55ºC to 60ºC; Humidity - 5-95% R.H. (Non-condensing)
Control Accuracy: Wind Speed - ±1 Unit of Measure; Wind Direction - ±4º; Temperature - ±0.4ºC MAX between -10ºC to 85ºC; Humidity - ±3% MAX between 0-80% R.H.
Sensor Accuracy: See Sensor Specifications
Resolution: Wind Speed - 1 Unit of Measure; Wind Direction - 1º
product series features
- Operates via mobile app on Android
- Wind Speed monitoring via A75-104 Anemometer
- Wind Direction monitoring via A75-302 Wind Vane
- User selectable speed units: MPH, M/S, or KPH
- User adjustable averaging time for wind speed/direction
- Instantaneous, average, and peak wind speeds recorded
- On-board temperature and humidity measurement
- (8) on-board SPST Normally-Open power relays for alarm outputs (user defined set-points)
- Relay ratings 30VDC/277VAC
- 8A resistive load
- Password protected to prevent unauthorized adjustments/set-points (user can reset password)
- Retains configurations without electrical power
- Fault detect monitoring of anemometer and wind vane
more information & related documents
Series Description
The Comptus C48 Set Point Wind Alarm is great for agriculture and environmental applications. The ability to detect wind speed and direction the eight alarm relay device has on-board temperature and humidity sensors as well as smartphone capabilities. Perfect for BAS, crane and fountain controls, industrial processing, growth facilities and more!
Kele Description
ENVIRONMENTAL MULTI SENSOR CONTROLLER, WIND SPEED SUB PANEL, 8 ALARM RELAYS, NO ENCL, WEB ACCESS
Manufacturer
Comptus
