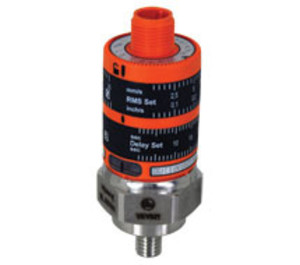

* product series image displayed

VKV022 | Ifm Efector | Gas & Specialty Sensors

VK VIBRATN MNTR SW PT 0 TO 50 MM/SEC

Brand:Ifm Efector

MPN:VKV022

SKU:VKV022

List Price:

$1,129.00

Today's Price:

$587.08

6 in stock

installation instructions

catalog page

product specifications

Type

ACCESSORY

product series specifications

Supply Voltage: 18 – 32 VDC, 525 mA

Signal Output: 4-20 mA

Maximum Output Impedance: 500 O

Contact Rating: 0.5A DC PNP (Sourcing)

Contact Type: 1 NC open collector transistor

Accuracy: Transmitter: ±5% of full range, Switch: ±4% of full range

Linearity: 0.25% of full range

Repeatability: <0.5% of full range

Measurement Range: VK021: 0 to 1 m/s (0-25 mm/second), VK022: 0 to 2 m/s (0-50 mm/second)

Frequency Range: 10 Hz to 1000 Hz

Visual Indication:Power: Green LED, Switching status: Yellow LED (Energized = Switched)

Shock: 400g

Switch Adjustment: up to 50 mm/sec

Time Delay: 1 to 60 seconds

Process Connection: M8 (order mounting adapter separately)

Wiring Terminations: 4 pin M12 reg foot connector (order separately)

Operating Temperature: 13° to 176°F (-25° to 80°C)

Enclosure Rating: PBT (Pocan); PC (Makrolon); FPM (Viton); stainless steel 316L, IP67, NEMA 1

Dimensions: 1.06" diameter x 2.88"H (2.7 x 7.31 cm)

Approvals: UL File E174189, CE

Weight: 1.0 lb (0.45 kg)

Warranty: 2 years

product series features

Two easy to use dual setup dials
Solid state electronics
Analog and switched outputs
No software needed
Local LEDs for power and switching status

more information & related documents

Series Description

The IFM Efector VK Series vibration monitor continuously monitors HVAC and industrial equipment to prevent machine downtime and expensive downtime. The compact VK Series switch is designed to be permanently mounted to monitor a machine's vibration level. The monitor provides continuous feedback of vibration within a range of 10Hz to 1000Hz with a 4-20 mA analog signal. Setup is quick using two setup dials to adjust the maximum RMS velocity setpoint and response delay time. The sensor continuously monitors real-time RMS vibration velocity (based on the ISO 10816 standard) and provides an analog output of the velocity as well as a switching output when an alarm value is exceeded. Highly-visible LEDs provide local indication for power and alarm.

Kele Description

VK VIBRATN MNTR SW PT 0 TO 50 MM/SEC

Manufacturer

Ifm Efector
