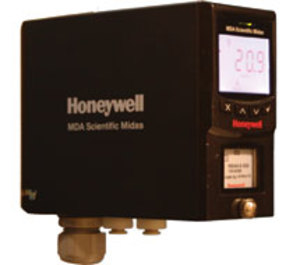

MIDAS-K-O2S | Honeywell Analytics | Gas & Specialty Sensors

O2 SINGLE ZONE OXYGEN MONITOR

Brand:Honeywell Analytics

MPN:MIDAS-K-O2S

SKU:MIDAS-K-O2S

List Price:

$-.--

Today's Price:

$-.--

(login for better pricing)

Lead time of days. Chat with Kele experts now

product specifications

Type

Accessory

product series specifications

Supply Voltage: 24 VDC -15% to 10% @ 208 mA

Signal Output: 3 alarm relays, 1A @ 30 VDC or 0.5A @ 125 VAC, 4-20 mA @ 250 O

Repeatability: ±5% of measured value

Linearity: ±2% of measured value

Measurement Range: 9-100 ppm

Gases Detected: Ammonia (NH3)

Sensing Technology: Single-pass, infrared non-dispersive

Coverage: 10' (3 m) sampling and exhaust provided, 100 ft (30 m) maximum

Warm Up Time: <10 minutes

Response Time: 2 to 30 seconds depending on sample tube length

Operating Temperature: 32° to 104°F (0° to 40°C)

Operating Humidity: 15% to 90% RH non-condensing

Enclosure Rating: NEMA 1

Dimensions: 5.9 in H x 12.6 in W x 6 in D (15 x 6.5 x 15.3 cm)

Weight: 1.8 lb (0.8 Kg)

Approvals: ETL, CE

Warranty: 2 years

product series features

Three alarm levels with N.O. or N.C. alarm contacts
4 digit display status indication
4-20 mA output signal
10 foot (3m) sampling tube and exhaust included
Visual alarm indication
Local indication of current and peak gas levels
NEMA 1
Modbus/TCP communication protocol

more information & related documents

Series Description

The Honeywell Analytics MIDAS-K-NH3 Series Single Zone Ammonia Gas Monitor is designed for single point monitoring of ammonia gas with up to 100 ft (30 m) maximum distance from measuring point to monitor. The unit features a digital display for local indication of current gas levels and peak value. Included is three relay outputs. The MIDAS-K-NH3 provides a system fault relay output and a 4 to 20 mA output for integration with remote monitoring equipment or building management systems. The MIDAS-K-NH3 is designed to be used as part of a control system that helps to prevent the formation of a hazardous environment when properly installed and maintained.

Kele Description

O2 SINGLE ZONE OXYGEN MONITOR

Manufacturer

Honeywell Analytics
