6401-0514 | Bacharach | Gas & Specialty Sensors

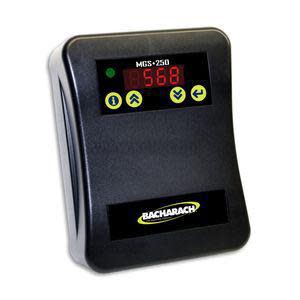

MGS-250, Infrared HFO1234ZE Detector
Brand:Bacharach
MPN:6401-0514
SKU:6401-0514
List Price:
$4,121.05
Today's Price:
$2,142.95
Log in for customized pricingproduct specifications
Application
Refrigeration, Laboratory, Transportation, Cold Storage, Pharma, Medical, Agriculture
Measurement Range
0 - 3,500 ppm
Display
Yes
Output Signal
Current
product series specifications
Supply Voltage: 24 VAC @ 24 VA, 50/60 Hz; 24 VDC @ 1 A
Accuracy: ±5%
Signal Output: 4-20 mA @ 1000?, 0-5V, 0-10V, 1-5V or 2-10V
Measurement Range: 0-3500 ppm
Relay Output: SPDT, 1A @ 24 VAC/VDC (5% DIF)
Sensing Technology: Non-dispersed Infrared
Life Expectancy: 5-7 years
Response Time: 5 min.
Communication: RS485, Modbus RTU, 9600 Baud
Wiring: 18 to 20 AWG terminals
Operating Temperature: -22° to 104°F (-30° to 40°C)
Operating Humidity: 50 to 90% non-condensing
Dimensions: 4"H x 5.5"W x 1.5"D (10.2 x 14 x 3.7 cm)
Weight: 0.4 lb (0.2 Kg)
Approvals: CE
Warranty: 1 year
product series features
- R-22, R-123, R-134A, R-407A and R-410A detection
- Selectable analog output
- LED status indication
- Alarm relay output
- 0 to 15 minute time delay (adjustable)
more information & related documents
Series Description
The Bacharach 6401 Series or MGS-250 Refrigerant Leak Detector is capable of detecting the presence of escaping refrigerants. It is model specific for five different CFC refrigerant types: R-22, R-123, R-134A, R-407A and R-410A. An selectable analog output is provided to allow interfacing to computer monitoring equipment. An alarm relay is also provided with adjustable set point and selectable time delay function to prevent nuisance alarms along with LED and Display. The 6401 Series is designed to be used as part of a control system that helps to prevent the formation of a hazardous environment when properly installed and maintained.
Kele Description
HFO1234ZE WALL SENSOR 4-20 MA RELAY MGS-250
Manufacturer
Bacharach
Related Documents
6401 Series Datasheet
