SL-2000-P | Air Products | Gas & Specialty Sensors

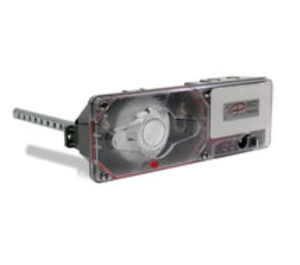

SMOKE DETECTOR DUCT PHOTOELECTRIC
Brand:Air Products
MPN:SL-2000-P
SKU:SL-2000-P
List Price:
$298.00
Today's Price:
$154.96
Log in for customized pricingproduct specifications
Mount
Duct
Type
Accessory
Output Type
Relay
product series specifications
Supply Voltage: Without accessories: 24 VAC @ 55 mA standby, 190 mA alarm
24 VDC @ 15 mA standby, 70 mA alarm
115 VAC @ 16 mA standby, 32 mA alarm
30 VAC @ 10 mA standby, 20 mA alarm
Frequency: 50/60 Hz
Relay Contacts: Alarm (2) SPDT, 10A, 115 VAC, resistive
Alarm (1) SPST-NO, 2A, 115 VAC, resistive
Trouble (1) SPDT, 10A, 115 VAC, resistive
Air Velocity: 100-4000 fpm (0.5-20.3 mps)
Radioactive Element: Americium 241, 0.9 µCi
Operating Temperature:
SL-2000-N: 32° to 158°F (0° to 70°C)
SL-2000-P: 32° to 140°F (0° to 60°C)
Operating Humidity: 10% to 85% RH non-condensing
Enclosure Rating: NEMA 1, Gray plastic back box, clear plastic cover
Dimensions: 4.5"H x 13.5"L x 2.25"D (11.4 x 34.3 x 5.7 cm)
Weight: 3.5 lb (1.6 Kg)
Warranty: 3 year
product series features
- Low-flow technology, 100-4000 fpm
- Universal voltage: 24 VAC, 24 VDC, 115 VAC, or 230 VAC
- Two Form C and one Form A alarm contacts and one trouble contact
- Interchangeable plug-in photoelectric or ionization heads
- Compatible with building automation and fire alarm systems
- Dust filtering included in detector head
- Interconnect up to 30 detectors for common functions
- Compatible with MS Series Remote Accessories
- Cover removal trouble indication
- Magnet test capability
- Front or rear loading sampling tubes
- Optional weatherproof enclosure
more information & related documents
Series Description
The Air Products & Controls SL-2000 Series Duct Smoke Detectors provide early smoke detection and sense combustion products present in air moving through HVAC ducts. Designed for use in building automation systems, BAS, each duct smoke detector uses intake sampling tubes to gather air samples. These are sold separately. A standard length exhaust tube is provided with each detector. These devices are designed to prevent the recirculation of smoke in areas by the air handling systems, fans and blowers. Complete systems may be shut down in the event of smoke detection.
Kele Description
SMOKE DETECTOR DUCT PHOTOELECTRIC
Manufacturer
Air Products
Related Documents
RT-3000 datasheet
