6302-0160 | Bacharach | Gas & Specialty Sensors

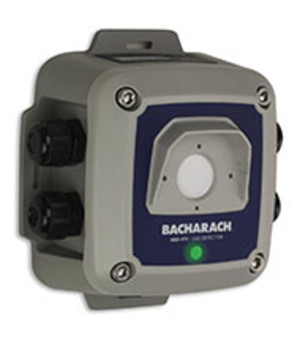

MGS410 GAS DETECTOR R450A IP66 MODBUS OUTPUT 0-1,000 PPM
Brand:Bacharach
MPN:6302-0160
SKU:6302-0160
List Price:
$969.48
Today's Price:
$504.13
Log in for customized pricingproduct specifications
Application
Refrigeration, Laboratory, Transportation, Cold Storage, Pharma, Medical, Agriculture
Measurement Range
0 - 1,000 ppm
Display
No
Output Signal
Communicating
product series specifications
Size (H×W×D): 5.1" x 5.1" x 2.4" (130 mm × 130 mm × 68 mm)
Weight: 9.2 oz (260 g)
Indicators: Multi-color status LED
Internal alarm buzzer: 72dB @ 3.9" (10 cm)
Alarm delay: Configurable (0 to 15 minutes)
Inputs: Tactile switches (x2), magnetic switches (x2)
Bluetooth®: Bluetooth® low energy, BLE 4.2
Modbus:
Connection - RS-485 terminal block
Baud Rate - 9,600 (default) or 19,200
Data bits - 8
Parity - None (default), odd or even
Stop bits - 1 (default) or 2
Retry time - 500 ms (minimum)
product series features
- Mobile app interface
- Pre-calibrated sensor
- Semi-automated calibration
- Remote sensor option
- Temperature-compensated measurement
- Low-temperature performance
- Digital communications
- Relay outputs
- Audio and visual alarms
- Multiple cable entries and terminals
more information & related documents
Series Description
The Bacharach MGS-410 Series is a low-cost refrigerant, toxic and combustible gas detector that can be connected to a building management system using Modbus, either MGS-408 Series or MGS-402 Series gas detection controllers, or as a standalone gas detector for low-temperature, IP66 applications. The MGS-410 Series is ideal for all AHSRAE 15 or EN378 safety compliance applications, including cold storage, freezers, coolers, or mechanical room applications.
Kele Description
MGS410 GAS DETECTOR R450A IP66 MODBUS OUTPUT 0-1,000 PPM
Manufacturer
Bacharach
MGS-400 Data Sheet MKTG00140 EN 0
