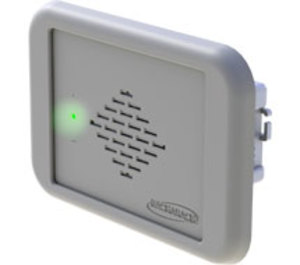

6203-2003 | Bacharach | Gas & Specialty Sensors
R410A WALL SWITCH MVR 300 120 VAC 10KPPM
Brand:Bacharach
MPN:6203-2003
SKU:6203-2003
product specifications
Application
Refrigeration, Laboratory, Transportation, Cold Storage, Pharma, Medical, Agriculture
Measurement Range
0 - 10,000 ppm
Display
No
Output Signal
Voltage
product series specifications
Supply Voltage: 120 VAC, 60 Hz @ 11 VA
Measurement Range:
Methane: 0-10,000 ppm, trip point 5000 ppm
Propane: 0-10,000 ppm, trip point 5000 ppm
Hydrogen: 0-10,000 ppm, trip point 5000 ppm
R410A: 10-10,000 ppm, trip point 1000 ppm
R134a: 10-10,000 ppm, trip point 1000 ppm
R22: 10-10,000 ppm, trip point 1000 ppm
R11: 10-10,000 ppm, trip point 1000 ppm
Alarm Relay Output: (2) SPDT, 1 A @ 24 VDC (5% DIF)
Visual Indication: Green LED: power Red Alarm
Alarm Auditory Levels Db: 80 dBA @ 10 ft (3m)
Operating Temperature: -4° to 122°F (-20° to 50°C)
Operating Humidity: 0 to 95% non-condensing
Dimensions: 5.8"H x 3.5"W x 2.4"D (14.7 x 8.8 x 6.2 cm)
Weight: 1.4 lb (0.6 Kg)
Approvals: CE
Warranty: 1 year
more information & related documents
Series Description
The Bacharach 6203 Series or MVR-300 VRF Refrigerant Leak Detectors are wall mounted, line voltage, relay detectors. It is an electronic detection system used to measure various gases to switch at a high limit which can be wired to fans, damper actuators, and etc. Gases measured include R410A, R404A, R32 and R407C refrigerant.
Kele Description
R410A WALL SWITCH MVR 300 120 VAC 10KPPM
Manufacturer
Bacharach
Related Documents
6203 Series Datasheet
