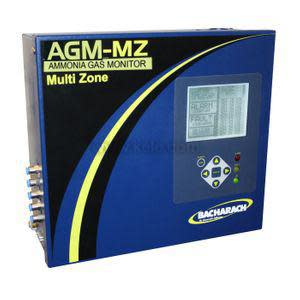

A blue control unit labeled as an ammonia gas monitor with a small screen and a four-button control panel.

3015-5047 | Bacharach | Gas & Specialty Sensors

NH3 Four Zone Ammonia Gas Monitor

Brand:Bacharach

MPN:3015-5047

SKU:3015-5047

List Price:

$22,449.64

Today's Price:

$11,673.81

installation instructions

catalog page

Lead time of 15 days. Chat with Kele experts now

product series specifications

Supply Voltage: 100 to 240 VAC @ 21 VA, 50/60 Hz

Accuracy: ±10 ppm from 25 to 100 ppm or ±10% reading from 100 to 10,000 ppm

Signal Output: 3 alarm relays, 1 fault relay, 240 VAC, 3A, (5% DIF) and 4-20 mA @ 500Ω (non-isolated)

Sensitivity: 25 ppm

Measurement Range: 25-10,000 ppm

Gases Detected: Ammonia (NH3, R-717)

Sensing Technology: Single-pass, infrared non-dispersive

Coverage: 1/4" O.D. tube up to 50 ft (15m) from measuring point to monitor

Warm Up Time: 15 minutes

Response Time: 9 to 90 seconds depending on sample tube length

Operating Temperature: 32° to 122°F (0° to 50°C)

Operating Humidity: 5% to 90% RH non-condensing

Enclosure Rating: NEMA 1

Dimensions: 7.7"H x 13.7"L x 3.6"D (19.6 x 34.8 x 9.1 cm)

Weight: 10.0 lb (4.5 Kg)

Approvals: UL File #E212266, CSA, CE

Warranty: 2 years

product series features

Three alarm levels with SPDT alarm contacts
Self diagnostics verify operation
LED status indication
System fault alarm
200 data point logging
4-20 mA output signal
50-foot sampling tube and end filter included
Audible and visual alarm indication
Local indication of current and peak gas levels
Alarm-silence button
NEMA 1

more information & related documents

Series Description

The Bacharach AGM-SZ Series Single Zone(tube) Ammonia Gas Monitor is designed for single point monitoring of ammonia gas with a 1/4 in. O.D. tube up to 50 ft (15.2 m) distance from measuring point to monitor. The unit features a digital display for local indication of current gas levels and peak value. Three adjustable alarm levels with relay output designate leak, spill, and evacuation concentrations. Gas alarms and system fault conditions are indicated by visual and audible alarms. The Model AGM-SZ provides a system fault relay output and a 4 to 20 mA output for integration with remote monitoring equipment or building management systems. The AGM-SZ Single Zone (tube) Ammonia Gas Monitor is designed to be used as part of a control system that helps to prevent the formation of a hazardous environment when properly installed and maintained.

Kele Description

NH3 FOUR ZONE AMMONIA GAS MONITOR

Manufacturer

Bacharach
