6302-1155 | Bacharach | Gas & Specialty Sensors

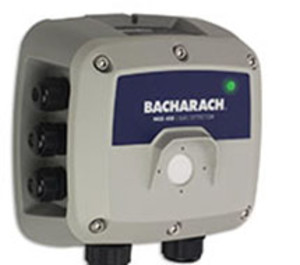

MGS450 GAS DETECTOR R32 IP41 3 RELAYS ANALOG AND MODBUS OUTPUT 0-1,000 PPM
Brand:Bacharach
MPN:6302-1155
SKU:6302-1155
product specifications
Application
Refrigeration, Laboratory, Transportation, Cold Storage, Pharma, Medical, Agriculture
Measurement Range
0 - 1,000 ppm
Display
No
Output Signal
Communicating
product series specifications
Size (Height × Width × Depth): 8.3 in x 8.9 in x 3.4 in (210 mm × 225 mm × 85 mm)
Weight: 1.05 lbs (480 g)
Indicators: Multi-color status LED
Internal alarm buzzer: 72 dB @ 1.5 in (10 cm)
Alarm delay: Configurable (0 to 15 minutes)
Inputs: Tactile switches (2), magnetic switches (2)
Outputs: Analog Output - 4 to 20 mA, 0 to 5V, 0 to 10V, 1 to 5V (default) or 2 to 10V
Bluetooth®: Bluetooth® low energy, BLE 4.2
product series features
- LED status indication
- Integrates with gas detectors
- Power gas detectors
- Modbus RTU master to gas detectors
- Modbus RTU slave to BMS / BAS
- Event logging via SD Card
- Display screen
- Audible and visual alarms
more information & related documents
Series Description
The Bacharach MGS-450 Series is a feature-rich refrigerant, toxic and combustible gas detector with a remote sensor (up to 16 ft. or 5 m). The MGS-450 Series can be connected to a building management system using Modbus, MGS-408 Series gas detection controllers, or as a standalone gas detector for low-temperature, IP66 applications. In addition, the MGS-450 Series includes 3-output relays (fault, low alarm, high alarm) and an analog output for local alarming, auxiliary ventilation, or refrigerant flow restriction. The MGS-450 Series is ideal for all AHSRAE 15 or EN378 safety compliance applications, including cold storage, freezers, coolers, or mechanical room applications.
Kele Description
MGS450 GAS DETECTOR R32 IP41 3 RELAYS ANALOG AND MODBUS OUTPUT 0-1,000 PPM
Manufacturer
Bacharach
MGS-400 Data Sheet MKTG00140 EN 0
