NO2-D | ACI | Gas & Specialty Sensors

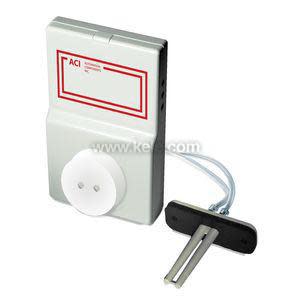

Nitrogen Dioxide Gas Sensor, Duct Mount, 0-10 PPM, Field Selectable Output, 0 Relay, No LCD, Plastic Enclosure, NEMA 1
Brand:ACI
MPN:NO2-D
SKU:A/NO2D
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Display
No
Application
Industrial,Oil & Gas,Labs,Agriculture,Transportation,Mining
product series specifications
- Supply Voltage:
- +24 VDC or 24 VAC Floating or one side ground
- Analog Outputs:
- 4-20 mA, 2-10 VDC, Digital RS-485, (2) SPDT Form 1C Relay
- Sensor Type:
- Electrochemical
- Accuracy/Repeatability:
- +/- 2.5% of Reading/+/- 1.0% of Reading
- CO Sensor Performance:
- :
- Operating Range 0-125 ppm (standard)/0-250 ppm (field adjustable)
- NO2 Sensor Performance:
- :
- Operating Range 0-6 ppm (factory set)/0-10 ppm (field adjustable)
- Coverage Area:
- 7500 square feet max.
- Operating Environment:
- -20 to 40‚ÑÉ -(40 to 104‚Ñâ)
- Operating Humidity:
- 15 to 90%, non-condensing, 0 to 99% Intermittent (non-condensing)
- Enclosure:
- :
- Material ABS/Polycarbonate
- :
- Product Dimensions (All CO & NO2) (H) 6.00” (W) 3.50” (D) 1.09”
- :
- Product Dimensions (NEMA 4X) (H) 6.60” (W) 4.20” (D) 2.60”
- :
- Warranty:
- 2 years
product series features
- Wide Spectrum, long life electrochemical sensor
- NEMA 1 rated ABS Polycarbonate plastic enclosure or
- NEMA 4X watertight and dust proof enclosure
- Option for LCD Display with 2 SPDT Form 1C relays and a buzzer.
more information & related documents
Series Description
The ACI CO and NO2 Sensor Series The CO and NO2 Series transmitters monitor carbon monoxide, or nitrogen dioxide, and are designed for the continuous monitoring of vehicle exhaust in non-hazardous areas. A wide spectrum, long life electrochemical sensor measures the amount of carbon monoxide or nitrogen dioxide in the environment. Both the Room and Duct transmitters are offered in a standard NEMA 1 rated ABS Polycarbonate plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is available with the room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer. The CO and NO2 Series are covered by ACI's Two (2) Year Limited Warranty. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
DUCT NO2 SENSOR NEMA 1
Manufacturer
ACI
ACI CO-NO2 GAS AREA POSITIONING
