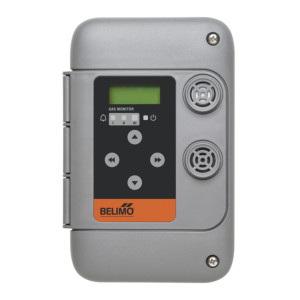

22G0214-5A | | Gas & Specialty Sensors
GAS MONITOR, CO 0-250PPM, NO2 0-10PPM, 2 ANALOG OUTPUT, 1 RELAY, BACNET MS/TP, CANBUS
Brand:
MPN:22G0214-5A
SKU:22G0214-5A
List Price:
$1,652.00
Today's Price:
$859.04
Log in for customized pricingproduct specifications
Application
Air Handling Unit
Frequency
50/60 Hz
Primary Voltage
24 VAC/VDC
Display
LCD
product series specifications
Voltage: AC/DC 24V
Measured Values: CO (Carbon Monoxide) and NO2 (Nitrogen Dioxide) Temperature
Output Signal: BACnet, CANbus, 2-10VM, 4-20MA Relay
Measuring Range Temperature: -4-122F, -20-50C
Measuring Range Gas: Carbon Monoxide 0-250 PPM, Nitrogen Dioxide 0-10 PPM
Communication: CANbus, BACnet MS/TP
Output Signal Relay Note: Relays: SPDT, 5A at AC 125V, Non-inductive
Output Signal Active Note: Analog outputs: 2-10V or 4-20MA
Display Type: LCD
product series features
- Communication via CANbus and BACnet MS/TP
more information & related documents
Series Description
Belimo gas monitors are factory calibrated and can monitor up to two gases simultaneously. All monitors feature audible and visual alarms and CAN bus communication, allowing for standalone operation and networking of up to 32 devices. Select models feature relays and analog outputs to control ventilation directly, as well as BACnet MS/TP allowing for integration into a BMS. All gas monitors are wired via a daisy chain and are backed by a five-year warranty.
Kele Description
GAS MONITOR, CO 0-250PPM, NO2 0-10PPM, 2 ANALOG OUTPUT, 1 RELAY, BACNET MS/TP, CANBUS
Manufacturer
Related Documents
22G0214-5 Belimo datasheet
