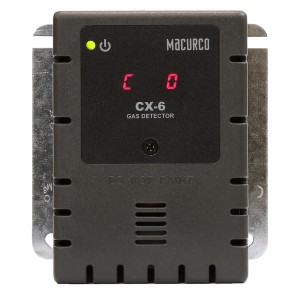

CX-6 | Macurco | Gas & Specialty Sensors
DUAL FIXED GAS DETECTOR, CO/NO2, 4-20MA, 2 RELAYS, 5A SPDT, 12-24VAC/12-32VDC, 0-200 PPM|0-20 PPM
Brand:Macurco
MPN:CX-6
SKU:CX-6
List Price:
$2,000.00
Today's Price:
$1,040.00
Log in for customized pricingproduct specifications
Application
Greenhouse Monitoring, Health Research, Vehlicle Exhaust, Parking Garages, Bus Barns, Car Dealerships, Repair Bays, Boiler Rooms, Furnace Rooms, Generators
Approvals
UL2075
Measurement Range
0 - 200 ppm CO, 0 - 20 ppm NO2
Display
Yes
Output Signal
Current
product series specifications
Supply Voltage: 6-Series: 12 to 24 VAC or 12 to 32 VDC; 12-Series: 100-240 VAC (50 to 60 HZ)
Supply Current: 6-Series: Current @ 24 VDC: 75 mA in alarm, 50 mA fan relay on and 23 mA stand by; 12-Series: Current: 1.0 A MAX
Fan relay: 50 mA @ 24 VDC
Both relays: (alarm) 75 mA @ 24 VDC
Signal Output: 4-20 mA @ 900?
Life Expectancy: sensor dependent 2-15 years
Visual Indication: LED Status Green
Display: LED
Buzzer: Selectable (On/Off) 85 dba @ 4" (10cm)
Time Range: Fan Relay: minimum run time: selectable Off (default), 3, 5, 10 or 15 minutes
Relay Output: Fan: 5A, 240 VAC, pilot duty SPDT; Alarm: 0.5A @ 200Volts, 10 VA
Time Delay: Fan Relay: Selectable at 0, 1, 3, (default), 5 and 10 minutes
Operating Temperature: 0°F to 125°F (-18°C to 52°C); CD-6/12H 32°F to 122°F (0°C to 50°C)
Operating Humidity: 10-90% RH Non-Condensing
Enclosure Rating: NEMA 1
Dimensions: 4.5"W x 4.0"H x 2.125"D (11.4 x 10.2 x 5.4 cm)
Weight: 1.0 lbs (0.45 Kg)
Approvals: UL2075 - CM-6/CM-12, ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1
Warranty: 2 Year Limited Warranty
product series features
- Easy installation to 4x4 electrical boxes via mud plate
- User selectable settings (Default to industry standards) via two button interface
- 5 A SPDT fan relay, 0.5A alarm relay to control fans, valves, louvers, horn and strobes
- 4-20mA output to control VFD™s and send to BMS
- LED display to easily show gas concentrations
- End of life notification
- Field calibration kits available
more information & related documents
Series Description
The Macurco 6 & 12 Series fixed gas detectors provide life-saving solutions aimed to protect people and property. These fixed gas detectors are designed for low level detection, mitigation, and notification. Let these detectors do the work for you by shutting off valves, turning on fans, engaging horns and strobes, and provide notification to fire panels and building automation systems when gases reach key limits. Gas Options: Combo Carbon Monoxide/Nitrogen Dioxide, Carbon Monoxide, Nitrogen Dioxide, Hydrogen, Methane (NG), Propane (LP), Oxygen, Carbon Dioxide, Hydrogen Sulfide, Ammonia, and Refrigerant.
Kele Description
DUAL FIXED GAS DETECTOR, CO/NO2, 4-20MA, 2 RELAYS, 5A SPDT, 12-24VAC/12-32VDC, 0-200 PPM|0-20 PPM
Manufacturer
Macurco
CX-6 CX-12 User Manual
