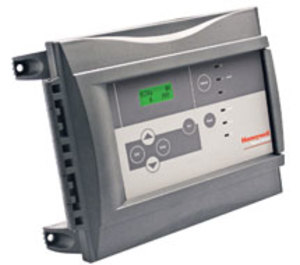

301-C-DLC-BIP | Honeywell Analytics | Gas & Specialty Sensors
GAS DETECTION CONTROLLER W/ DATALOGGING BACNET
Brand:Honeywell Analytics
MPN:301-C-DLC-BIP
SKU:301-C-DLC-BIP
List Price:
$10,715.00
Today's Price:
$5,571.80
Log in for customized pricingproduct specifications
Application
Refrigeration, Laboratory, Transportation, Cold Storage, Pharma, Medical, Agriculture
Mount
Wall
Display
Yes
Output Signal
Communicating
Output Type
BACnet
product series specifications
Supply Voltage: 17-27 VAC @ 8.6 VA or 24-38 VDC @ 350 mA
301C-DLC: 17-27 VAC @ 8.6 VA or 24-38 VDC @ 250 mA
301R: 5A, 30 VDC or 250 VAC (resistive load)
A301C-DLC: 4 DPDT relays (alarms/fault), buzzer
301R: 8 DPDT relays
Relay Setpoint: Multiple with high and low setpoints
Alarm Auditory Levels Db: 65 dba @3 ft (1m)
Alarm Time Delay: 0, 30 sec, 45 sec, 1-99 minute before and after alarm
Network: Capacity: Up to 96 transmitters and 96 relay modules
Communication: Three Modbus zones
Distance To Transmitters: 2000' (600m) maximum, 65 ft (20m) T-Tap, 130 ft (40m) total T-Tap, 2000 ft (600m) maximum
User Interface: Dot-matrix display and keypad
Visual Indication:
Blinking Green LED: Normal operation
Red LED: Alarm Level 1, 2, and 3
Blinking Amber LED: Signal Tx
Blinking Green LED: Signal Rx
Yellow LED: Failure
Operating Temperature: -4° to 122°F (-20° to 50°C)
Operating Humidity: 0% to 95% RH (non-condensing)
Dimensions:
301C-DLC: 8.0" H x 11.0" W x 2.7" D (20.3 x 28.0 x 7.0 cm)
301R: 8.0"H x 9.5"W x 2.5"D (20.3 x 24.4 x 5.7 cm)
Weight: 301C-DLC: 2.3 lb (1.0 Kg), 301R: 3.0 lb (1.4 Kg)
Approvals: CSA
Warranty: 1 year
product series features
- Full array of visual indicators and audible alarm
- Multiple fully programmable alarm levels
- Programmable time delays
- Failure indicator
- Up to 96 transmitters and relay modules
- Up to 768 events
- Up to 128 zoning groups
- Graphic 122 x 32 dot-matrix display
- Datalogging available
- Programmable relay differential
more information & related documents
Series Description
The Honeywell Analytics 301C-DLC Gas Detection Controller provides continuous monitoring of up to 96 inputs/outputs, on three channels, at distances up to 2000'. Modbus communication channels are included. The 301C-DLC is pre-programmed at the factory, but menu driven changes can be made in the field. The 301C-DLC allows monitoring of an entire network and will initiate an alarm or ventilation activation upon detection of a gas. One model is available with datalogging. The 301C-DLC Gas Detection Controller is designed to be used as part of a control system that helps to prevent the formation of a hazardous environment when properly installed and maintained.
Kele Description
GAS DETECTION CONTROLLER W/ DATALOGGING BACNET
Manufacturer
Honeywell Analytics
