GDTCNCSMVVR2AXX | Greystone Energy Systems | Gas & Specialty Sensors
CO/NO2 DETECTOR, VIEWABLE LCD, VOLTAGE, 2 RELAYS, AUD/VIS ALARM
Brand:Greystone Energy Systems
MPN:GDTCNCSMVVR2AXX
SKU:GDTCNCSMVVR2AXX
List Price:
$1,428.00
Today's Price:
$742.56
Log in for customized pricingproduct specifications
Application
IAQ, VOC, Healthcare, Environmental, Food, Construction, Automotive
Measurement Range
0 - 500 ppm CO, 0 - 10 ppm NO2
Display
Yes
Output Signal
Voltage, Current
product series specifications
Gas Type Detected: Carbon Monoxide (CO) and/or Nitrogen Dioxide (NO2)
Sensor Type: Electrochemical, diffusion sampling
Measurement Range: Carbon Monoxide: 0-500 ppm, adjustable 100-500 ppm, Nitrogen Dioxide: 0-10 ppm
Response Time: < 30 seconds typical, WARM-UP TIME 1 minute
Sensor Coverage Area: 700m² (7500ft²) or 15m (50ft) radius
Sensor Life Span: Carbon Monoxide: 5-7 years in air, Nitrogen Dioxide: 2 years
Sensor Reproducibility (Same Day): ±2% LONG TERM DRIFT Carbon Monoxide
Power Supply: 24 Vdc ±20% or 24 Vac ±10% (non-isolated half-wave rectified)
Protection Circuitry: Reverse voltage and transient protected
Output Signal: 4-20 mA (3-wire), 0-5 Vdc/0-10 Vdc, BACnet® or Modbus
Network Interface: Hardware: 2 wire RS-485, Software: Native BACnet® MS/TP or Modbus RTU, Baud Rate: Locally set 9600, 19200, 38400, 57600, 76800, or 115200; MAC Address Range: 0-255 (Factory default is 1) (128 devices max on one daisy chain)
Current Consumption: 425 mA @ 24 Vac max, 220 mA @ 24 Vdc max (test mode)
Output Drive @ 24 VDC: Current: 550O maximum, Voltage: 10,000O minimum
Ambient Operating Range: -20 to 50°C (-4 to 122°F), 15 to 90%RH non-condensing
Storage Temperature: -30 to 60°C (-22 to 140°F)
LCD: Viewable or concealed (with cover closed), Units: ppm for CO/NO2, °C/°F for optional temperature, Size: 35mm W x 15mm H (1.4" x 0.6"), alpha-numeric 2-line x 8 characters, Backlight: Enable or disable via menu
User Interface: Silence/Test button, Bi-color status LED, Red LED alarm indicator, White high intensity LED strobe (optional)
Optional Temperature Signal: Type:Thermistor or RTD, Accuracy: Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F), Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F), Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)
Main Enclosure:Material / Rating: Grey Polycarbonate, UL94 V0, IP65 (NEMA 4X), Dimensions Incl. Sensor Pod: 202.3mm H x 184mm W x 54.3mm D (8" x 7.24" x 2.15"). Weight Incl. Sensor Pod: 515 grams (1.14 lbs)
Approvals:CE
Country of Origin:Canada
product series features
- Field replaceable sensors
- Maintain system accuracy
- Pre calibrated replacement sensors
more information & related documents
Series Description

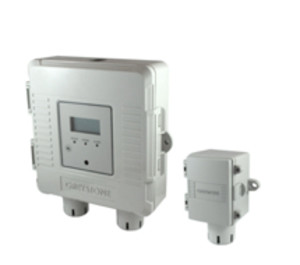

The GDT Series of gas monitoring sensors monitor levels of carbon monoxide (CO) and/ or nitrogen dioxide (NO2 ) to provide an early warning of elevated concentrations. The GDT is available as a standalone CO or NO2 , as well as a CO/NO2 dual sensor device. The dual sensor device is available in 2 configurations: CO/ NO2 housed one enclosure or as CO with remote NO2 sensor for mounting at a higher location. The GDT gas sensors are encapsulated in field replaceable sensors pods that are located on the bottom of the enclosure. The pod design provides a greater area of gas sampling than that of devices that utilize a single vent hole. Replacement pods come pre-calibrated and ready for installation. The GDT is available with either Analog, BACnet or Modbus outputs for communication with a building automation system. Standard features include LCD display for configuration and local display as well as status LED's. Optional features include: 1 or 2 adjustable control/alarm relays, adjustable audible (buzzer) & visual (strobe) alarms as well as various temperature sensor. The GDT is housed in an IP65 polycarbonate enclosure with a hinged and gasketed cover that provides ease of installation and access for set up.
Kele Description
CO/NO2 DETECTOR, VIEWABLE LCD, VOLTAGE, 2 RELAYS, AUD/VIS ALARM
Manufacturer
Greystone Energy Systems
Related Documents
GDT BACnet Setup
