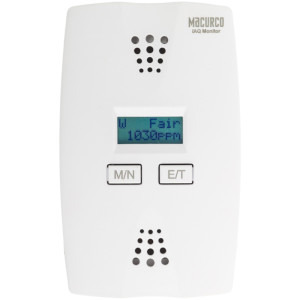

IAQ-CO2-A-W | Macurco | Gas & Specialty Sensors

CO2 ANALOG WALL MOUNT FIXED GAS DETECTOR-RANGE OF 0-2,000PPM

Brand:Macurco

MPN:IAQ-CO2-A-W

SKU:IAQ-CO2-A-W

List Price:

$625.00

Today's Price:

$325.00

5 in stock

product datasheet

installation instructions

product specifications

Application

Indoor Air Quality, Residential, Multi-Family, Offices, Schools, Restaurants, Breweries, Beverage Dispensing Areas, Cultivation Facilities, Industrial Environments, Safety Industries

product series specifications

Size: 3.25” (H) x 5.25” (L) x 1.75” (W)

Shipping Weight: 1 lb. (16 oz.)

Voltage/Current: 12-24VAC or VDC

CO2 Range/Resolution: 0-2,000PPM, 10PPM

VOC Range/Resolution: 0-500 Index points, 2 index points.

Display: LCD 2x8 characters with backlight

Operating Temperature: 32°F to 122°F (0°C to 50°C)

Ambient Humidity: 10-99% RH non-condensing

Relay: 0.5A Control Relay User adjustable settings

Current Loop (Analog Only): 4-20mA output

Mounting: Flush to single gang box or surface mount

Warranty: Two-year limited warranty

Life Expectancy: 10 years

product series features

Easy installation to single gang box
Aesthetically pleasing- flush mount or surface options
User selectable settings via two button interface
0.5A configurable (N.O. or N.C.) dry contact relay to engage ventilation
Analog or digital outputs versions to send values to BMS
Occupancy mode
Adjustable setpoints
End of life notification
LCD display

more information & related documents

Series Description

The Macurco IAQ product family ensures you “Know Your Air” in indoor applications. An essential tool for maintaining adequate indoor air quality aiding with energy savings and mitigating stale polluted air. The family of products accurately monitors Carbon Dioxide (CO2 ) and Volatile Organic Compounds (VOCs).

Kele Description

CO2 ANALOG WALL MOUNT FIXED GAS DETECTOR-RANGE OF 0-2,000PPM

Manufacturer

Macurco
