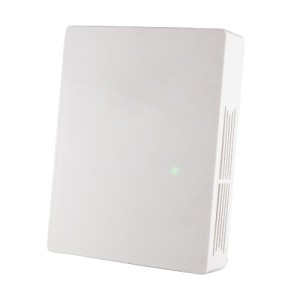

IAQRM5XC | Greystone Energy Systems | Gas & Specialty Sensors
IAQ, CO2, HUMID, TEMP, PARTICULATE MATTER AND TVOC. SELECTABLE BACNET/ MODBUS, CONCEALED DSP
Brand:Greystone Energy Systems
MPN:IAQRM5XC
SKU:IAQRM5XC
List Price:
$1,063.00
Today's Price:
$552.76
Log in for customized pricingproduct specifications
Type
Multi-Sense
Measurement Range
0 to 60 °C,32 to 140 °F
Display
Yes
Application
CO2,VOC,RH,TEMP,CH2O
Mount
Wall
product series specifications
Power Supply: 12-28 VAC/VDC
Consumption: Maximum 150mA @12VDC, 1.8W
Wiring Termination:Backplate mounted terminal block (14 to 22 AWG)
Operating Conditions: 0 to 60°C (32 to 140°F), 0 to 95% RH Non-Condensing
Sensor Coverage:100 m² (1000 ft²) typical
Certifications: CE
product series features
- Measures 5 or 6 parameters
- Field replaceable sensor modules
- BACnet® or Modbus communications
- Full-colour configurable touchscreen LCD
- Configurable alarm relay
- Modern, quick-mount enclosure
more information & related documents
Series Description
The IAQ will monitor up to 6 parameters that include Particulate Matter (PM1, PM2.5, PM4 & PM10), Volatile Organic Compounds, Carbon Dioxide, Formaldehyde, Humidity & Temperature and provide either a BACnet® or Modbus signal for connection to a building automation system. The IAQ features field-replaceable sensor modules, a full-color capacitive touch screen LCD that’s user-configurable, and a configurable alarm relay output. All this is housed in a new modern, quick-mount enclosure. <br> The IAQ facilitates compliance with ASHRAE 62.1 standard for air quality and contributes toward satisfying Feature A08 and T06 under the WELL Building Standard®.
Kele Description
IAQ, CO2, HUMID, TEMP, PARTICULATE MATTER AND TVOC. SELECTABLE BACNET/ MODBUS, CONCEALED DSP
Manufacturer
Greystone Energy Systems
Installation Instructions
