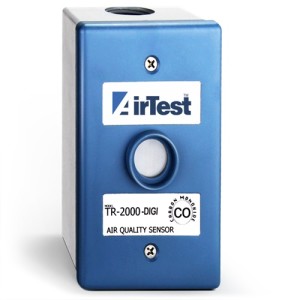

TR2000-CO-DIGI | Air Test Techonologies | Gas & Specialty Sensors

CO TRANSMITTER 4-20 MA WALL MOUN 200 PPM WITH DIGITAL OUTPUT

Brand:Air Test Techonologies

MPN:TR2000-CO-DIGI

SKU:TR2000-CO-DIGI

List Price:

$845.00

Today's Price:

$439.40

Lead time of 14 days. Chat with Kele experts now

product specifications

Application

Enclosed Vehicle Parking Ventilation

Measurement Range

0 - 200 ppm, -4 to 122 °F, -20 to 50 °C

Mount

Wall

Primary Voltage

24 VAC

Type

Sensor

Output Signal

Current

product series specifications

General

Measurement: CO, Temperature

Temp Operating Conditions: -4 to 122º F (-20 to 50ºC)

Temp Storage Conditions: -40 to 158ºF (-40 to 70ºC)

RH Operating Conditions: 0 to 95% RH (Non-Condensation)

CO Measurement

Sensing Method: Electrochemical

Approval: UL2075 Certified Sensor

Measurement Range: 0-200 ppm

Sensor Rated Life: 6 years

Annual Drift: +/- 5% of measured value

Response Time: T90 = <1 minute (diffusion)

Warm Up Time: < 2 minutes

Enclosure Temperature

Method: Thermistor

Measurement Range: -4 to 122º F (-20 to 50ºC)

Accuracy: ±2.6 ºF (±2ºC)

Power/Wiring

Voltage: 24VAC/VDC ±20%, full wave rectified

Power Consumption: 1.5 W max

Power Wiring: 18 to 22 gauge

product series features

Easily specify enclosed spaces with operating vehicles with our flexible sensor
Two digital gas channels
Baud rate adjustment
One digital temp. channel
5-8 year sensor life
Certified to UL2075
Low sensor drift

more information & related documents

Series Description

TR2000-CO-DIGI: Multi-protocol network transmitter for CO2, NO2 and temperature measurement. Digital outputs of the TR2000 DIGI include carbon monoxide, temperature and NO2 from a remotely mounted AirTest TR3210-NO2 Utilizes a single gang, 4” x 3” x 2.5” electrical box (included), identical to original TR2000 design.

Kele Description

CO TRANSMITTER 4-20 MA WALL MOUN 200 PPM WITH DIGITAL OUTPUT

Manufacturer

Air Test Techonologies
