T8200-DB | Telaire/Amphenol | Gas & Specialty Sensors

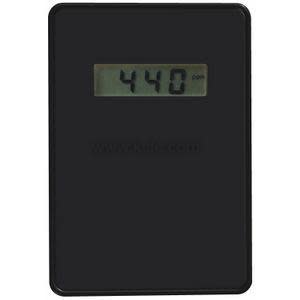

Wall Mount Carbon Dioxide & Temperature Transmitter, Dual Channel, LCD Display, Black Enclosure, 0-2000 PPM
Brand:Telaire/Amphenol
MPN:T8200-DB
SKU:T8200-DB
product specifications
Application
Greenhouse, Laboratory, Food & Beverage, IAQ, Parking Garage, Agricultural
Measurement Range
0 - 2,000 ppm
Display
No
Output Signal
Current
product series specifications
Supply Voltage: 18-30 VAC @ 0.7 VA, 50/60 Hz or 18-42 VDC @ 29 mA
Accuracy:
T8100/T8300: 400-1250 ppm: ±3% or 30 ppm, whichever is greater; 1250-2000 ppm: ±5% +30ppm,
T8200: 10% or 75 ppm, whichever is greater;
Humidity: ±2.5% RH (20 to 80% RH)
Temperature: ±0.8% @ 72°F (22°C)
Signal Output: 0-5V, 0-10V, or 4-20 mA (500 ohms) selectable for CO2, humidity, or temperature (simultaneous current or voltage output for CO2)
Measurement Range:
CO2: 0 to 2000 ppm
Humidity: 0 to 99% RH (non condensing)
Temperature: 32° to 122°F (0° to 50°C)
Relay Type: SPDT, 0.5 A @ 125 VAC, 1 A @ 24 VDC
Sensing Technology:
CO2: Non-dispersive infrared (NDIR)
Humidity: Capacitive polymer
Temperature: Passive: 10kO Type II thermistor
Warm up time: (CO2) 10 minutes
Display: Scrolling LCD
Response Time: 5 seconds
Operating Temperature: 32° to 122°F (0° to 50°C)
Operating Humidity: 0% to 95% RH
Weight: 1.0 lb (0.45 Kg)
Approvals: RoHS, CE
Warranty: 1 year (lifetime on calibration)
product series features
- Simultaneous voltage and current outputs for CO2
- Maintenance free lifetime self-calibration
- Passive temperature output
- Non-dispersive infrared sensor
- Ideal for 24 hours per day facilities (T8200)
- Optional display available
- Optional active temperature and humidity outputs
- Relay and Night setback models
- Lifetime warranty with single channel ABC logic
more information & related documents
Series Description
The Telaire/Amphenol Advanced Sensors 8000 Series Ventostat CO2/RH/temperature transmitter is the next generation CO2 sensors. Both the 8100 and the 8200 are available with optional and selectable analog humidity and temperature outputs. The 8300 offers all of the accuracy of the 8100 but utilizes a pitot tube kit for measuring duct levels of CO2.
Kele Description
CO2 WALL W/LCD BLK FULL TIME OCC APP-NO RELAY
Manufacturer
Telaire/Amphenol
8000 Series Datasheet
