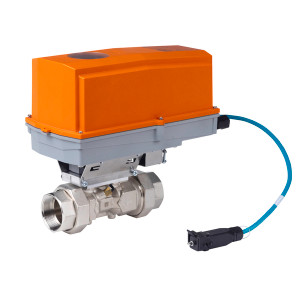

22PE-5XUENH | Belimo | Flow

THERMAL ENERGY METER, AC/DC 24 V, DN 25, FLUID TEMPERATURE -4.0...248F, NEMA 4

Brand:Belimo

MPN:22PE-5XUENH

SKU:22PE-5XUENH

List Price:

$3,763.00

Today's Price:

$1,956.76

product datasheet

catalog page

Lead time of 5 days. Chat with Kele experts now

product specifications

Type

Inline Flow Meter

Accuracy

0.02

Pipe Size

1/2 in and up

Max Temperature

250 °F

Supply Voltage

24 VAC/VDC

product series specifications

Voltage AC/DC: AC/DC 24 V

Electrical Connection: cable

Measured Values: Flow and Temperature

Output Signal: BACnet, Modbus, MP-Bus, 0...10 V

Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus

Output Voltage [Range]: 1 x 0...10 V, 0.5...10 V, 2...10 V

Fluid: Chilled and hot water, water with glycol up to max. 60% vol.

Valve Size: 15 mm

Valve Size: 1/2 inch

product series features

The thermal energy meter consists of a flow measuring section, evaluation electronics and two temperature sensors. One temperature sensor is integrated in the flow sensor, the other temperature sensor is installed as an external sensor.
The device determines the thermal energy supplied to the heat exchanger or coil from the flow and the temperature difference between supply and return.
The thermal energy meter can be operated as a heat meter, cooling meter or heat/cooling meter. In addition, it can be installed either in the return or in the supply of the system. The corresponding application must be set via NFC when activated with the Belimo Assistant App.
A calibration certificate is available in the Belimo Cloud for each thermal energy meter. If required, this can be downloaded as a PDF with the Belimo Assistant App or via the Belimo Cloud frontend.
The energy meter can be programmed as a combined heat/cooling meter via NFC and the Belimo Assistant App.
The thermal energy meter measures the current flow rate every 0.1 s in mains operation.

more information & related documents

Series Description

Thermal energy meter provides precise flow and energy measurement in a heating or cooling system. Equipped with automatic temperature and glycol compensation that ensures reliable measurement. Optional PoE (Power over Ethernet) simplifies installation. Seamless integration via BACnet, Modbus and MP-Bus. Parameters can be easily set using NFC or a web server. Connection to Belimo Cloud supports remote Internet of Things metering and billing. NIST, SI, and BIPM-traceable.

Kele Description

THERMAL ENERGY METER, AC/DC 24 V, DN 25, FLUID TEMPERATURE -4.0...248F, NEMA 4

Manufacturer

Belimo
