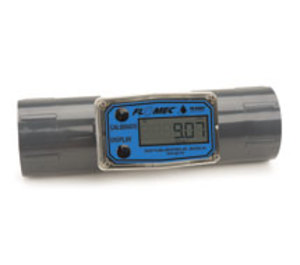

TM30SPOGMD | Great Plains Industries | Flow

Accuracy (% of Reading): ±3.0%

Meter Sizes: 1/2”, 3/4", 1", 1 1/2", 2”, 3", 4"

Flow Range:

1/2” 1-10 GPM (3.8-37.9 LPM)

3/4” 2-20 GPM (7.6-75.7 LPM)

1” 5-50 GPM (18.9-190 LPM)

1-1/2” 10-100 GPM (38.0-380 LPM)

2” 20-200 GPM (76-760 LPM)

3” 40-400 GPM (151-1514 LPM)

3” Extended Range 30-600 GPM (131-2271 LPM)

4” 60-600 GPM (227-2271 LPM)

4” Extended Range 40-800 GPM (151-3028 LPM)

Fitting Type:

NPT (Female) Schedule 80 Spigot (Pipe) End

BSPP (Female) (1", 1 1/2", 2", 3" & 4" meters only)

150# ANSI Flange or DIN 100 Flange (3" & 4" meters only)

Operating Temperature: +32 to +140°F (0 to +60°C)

Pressure Rating:

1/2”-2" 225 PSI / 15.3 BAR @ 73°F (23°C)

BSP 150 PSI / 10.3 BAR @ 73°F (23°C)

3”-4” 225 PSI / 15.3 BAR @ 73°F (23°C)

DIN 135 PSI / 9.1 BAR @ 73°F (23°C)

For CE Applications 135 PSI / 9.1 BAR @ 73°F (23°C)

Typical K-Factor:

1/2” 2,500 PPG / 660 PPL

3/4” 1,100 PPG / 291 PPL

1" 565 PPG / 149 PPL

1 1/2" 215 PPG / 57 PPL

2" 100 PPG / 26 PPL

3” 43 PPG / 11 PPL

4" 17 PPG / 4.5 PPL

Wetted Materials 1/2"-2"

Housing PVC

Bearings Ceramic

Shaft Tungsten Carbide

Rotor PVDF

Rings 316 Stainless Steel

Wetted Materials 3"-4"

Housing PVC

Bearings PEEK

Shaft & Thrust Washers Stainless Steel

Rotor & Nose Cone Acetal

Signal Generator Ferrite

Calibration Report: Comes standard with P (Pulse out) TM models

N.I.S.T. - Certification available

Approvals: CE

Warranty: 5 years

**At the end of Extended Flow Range accuracy may decrease. Damage to the meter may occur if running at high Extended Range.:

** PVC pressure rating will incrementally decrease above 73°F (23°C)
