WNT-A-C-06 | Dwyer Instruments | Flow

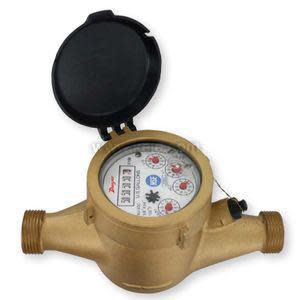

Multi-Jet Water Meter, 1 Pipe Size, NSF Certified, Brass Body With 0.1 Gallon Pulse Output
Brand:Dwyer Instruments
MPN:WNT-A-C-06
SKU:WNT-A-C-06
List Price:
$538.00
Today's Price:
$279.76
Log in for customized pricingproduct specifications
Type
Inline Flow Meter
Pipe Size
1 in
Max Temperature
122 °F
Supply Voltage (Nominal)
24 VAC, 24 VDC
product series specifications
Service: Water
Wetted Materials:
Body: C87850 brass alloy (no lead, 75.5% copper, ECO-BRASS®
Couplings: C87850 brass alloy
Measuring chamber: ABS plastic
Accuracy: Transitional flow: ±3%; Nominal flow: ±1.5%
Temperature Limit: 122°F (50°C)
Pressure Limit: 150 psi (10 bar)
Output Signal: Pulse output with frequency proportional to flow rate
Pulse Options: 5/8” 1" (15 mm to 25 mm): 0.1-gal, 1 gal, 10-gal, 100 gal per pulse; 1-1/2‚" to 2" (40 mm to 50 mm): 1 gal, 10 gal, 100 gal per pulse
Electrical Rating: 0.01 A @ 24 VAC/DC
Electrical Connections: Color-coded lead wires, 4.5" (1.5 m) long; Pulse Emitter Device consists of plastic housing with Reed Switch
Mounting Orientation: Horizontal with the register face pointing up
Approvals: NSF
product series features
- NSF/ANSI 61 certification makes it ideal for no lead requirements
- Multi-jet design allows for simplicity and accuracy with side flow ranges, even in low flow applications
- Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
- Designed for long service life and maintenance-free operation
- Integral strainer that protects meter from particulate damage
- Easy installation with included coupling adapters
- Pulsed output proportional to flow allows for remote flow totalization
more information & related documents
Series Description
The Dwyer WNT Series NSF-certified multi-jet water meters is a series of mechanical, water totalizing meters that display the total water usage in gallons or cubic meters. They are available in a range of body sizes and include NPT or BSPT couplings. The lead free, NSF-certified body is ideal for potable water applications. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
MULT JET NSF BRASS WATER METER 1", 1"NPT
Manufacturer
Dwyer Instruments
Related Documents
WNT Series Data Sheet
