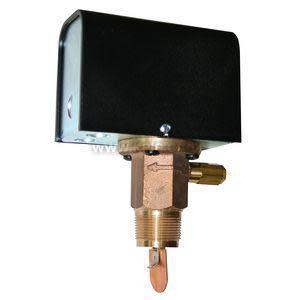

119700 | McDonnell & Miller | Flow
Flow Switch Brass, SPDT 6-16" Pipe
Brand:McDonnell & Miller
MPN:119700
SKU:FS7-4
List Price:
$2,277.00
Today's Price:
$1,184.04
Log in for customized pricingproduct specifications
Max Pressure
300 psi
Type
Water Flow Switch
Pipe Size
6 - 16 in
Max Temperature
300 °F
product series features
- FS4-3 has SPDT switch, 1 in. process connection, and is for pipes 1 in. to 6 in.
- FS4-3D is the same as the FS4-3 except with dual SPDT for 2 separate outputs
- FS8-W has a weatherproof NEMA 4X housing
- FS7-4 has SPDT switch, 1-1/4 in. process connection and is for larger pipes 6 in. to 16 in.
- FS7-4W is the same as the FS7-4 except with weatherproof NEMA 4X housing
more information & related documents
Series Description
McDonnell & Miller FS Series paddle type flow switches are widely used in Commercial HVAC and Industrial applications for flow indication in any common pipe size 1 in. and greater. The general purpose FS4-3 and general purpose weather proof FS8-W have a 1 in. NPT male connection and fit pipe sizes from 1 in. to 6 in. sizes. The industrial grade FS7-4 and weatherproof FS7-W have a 1-1/4 in. NPT male connection and fit pipe sizes from 1-1/4 in. to 16 in. sizes.
Kele Description
FLOW SW BRASS, SPDT 6-16 IN
Manufacturer
McDonnell & Miller
FS4-3 Series Datasheet
