UFT-1A | Kele | Flow
ANALOG/PULSE OUT FLOW XMITTER
Brand:Kele
MPN:UFT-1A
SKU:UFT-1A
List Price:
$372.00
Today's Price:
$193.44
Log in for customized pricingproduct specifications
Accuracy
0.50%
Type
Flow Transmitter
Housing Electrical Connection
TERMINALS
Max Temperature
140 °F
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 24 VDC
Accuracy: ± 0.5%
Input Signal: 15 to150 Hz FS, dry or electric contact
Maximum Output Impedance: 750O @ 24 VDC
Output Signal:
UFT-1 Solid state switch
UFT-1A 4-20 mA
Pulse Output: 40 VDC @ 200 mA
Configuration: Factory configured only; provide pipe size/schedule and maximum flow rate at time of order
Response Time: 5 seconds from 10% to 90%

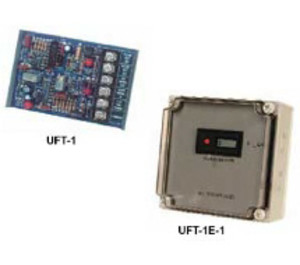

Mounting:
UFT-1, -1A Snap track
UFT-1E, -1AE Surface mount, enclosed
Operating Temperature: 32° to 140°F (0° to 60°C)
Operating Humidity: 5% to 90% RH non-condensing
Approvals: RoHS
Warranty: 1 year
product series features
- Analog and pulse outputs
- Optional watertight (NEMA 4X) enclosure
- Optional displays for flow rate and totalization
- Excitation voltage for flow sensors
- LED indication of pulse activity
more information & related documents
Series Description
The Model UFT-1 Universal Flow Transmitter is a solid-state, digital signal converter designed to operate with Data Industrial 200 Series flow sensors. Ideal for use in Building Automation Systems, BAS, and HVAC applications, the transmitter is available in both analog (4-20 mA) and pulse outputs. The transmitters may be mounted in an optional NEMA 4X enclosure or with digital display of gpm or totalized flow (in a non-watertight enclosure).
Kele Description
ANALOG/PULSE OUT FLOW XMITTER
Manufacturer
Kele
