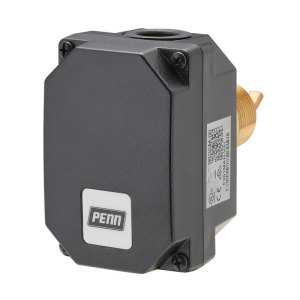

F261KAH-V01C | Johnson Controls | Flow
Standard Model Flow Switch With Type 3R (NEMA) Enclosure; 1 In., 2 In., 3 In., And 6 In. Stainless Steel Paddles, Lock-Tooth Washer, And Stainless Steel Paddle Screw Supplied Uninstalled
Brand:Johnson Controls
MPN:F261KAH-V01C
SKU:F261KAH-V01C
61 in stock
product specifications
Controllable Flow Range
4-760 GPM
Type
Water Flow Switch
Housing Electrical Connection
1/2 NPT
Pipe Size
1 - 6 in
Max Pressure
290 psi
Max Temperature
250 °F
product series specifications
- Switch:
- SPDT
- Enclosure:
- UL: Type 3R or Type 4
- :
- CE: IP43 (IP23 with drain hole plug removed) or IP67
- Wiring Connections:
- Three color-coded screw terminals and one ground terminal
- Conduit Connection:
- One 7/8‚Ä= (22 mm) hole for 1/2‚Ä= trade size (or PG16) conduit
- Pipe Connector:
- Standard: 1‚Ä= 11 1/2‚Ä= NPT threads
- Maximum Fluid Pressure:
- 290 psi (20 bar)
- Minimum Fluid Temperature1:
- 20‚Ñâ (-29‚ÑÉ)
- Maximum Fluid Temperature2:
- 250‚Ñâ (121‚ÑÉ)
- Ambient Conditions:
- -40 to 140‚Ñâ (-40 to 60‚ÑÉ)
- Approvals:
- cULus Listed: UL 60730, File E6688, FCC Compliant to CRFR47, Part 15, Subpart B, Class B
- Media:
- Water, ethylene glycol, brine, sea water, swimming pool water and lubricating oils
- Warranty:
- 1 year
product series features
- Type 3R (NEMA) or Type 4 (NEMA)
- Viton® diaphragms allow use in fluid lines carrying chlorinated water, treated water, or other nonhazardous fluids
- Low-flow operation on low-flow models
- Maximum fluid pressure of 290 psig
more information & related documents
Series Description
The Johnson Controls F261 Series flow switches respond to fluid flow in lines carrying water, ethylene glycol, or other nonhazardous fluids. These models also work in applications with swimming pool water and lubricating oils. The F261 Series flow switches use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1 inch trade size. Models are available for 1/2 in. and 3/4 in. applications as well.
Kele Description
PADDLE FLOW SWITCH NEMA 3R SS PADDLES 1 2 3 6 IN
Manufacturer
Johnson Controls
