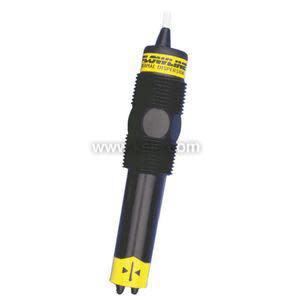

FT10-1405 | Flowline | Flow
Liquid, PP-Ryton Sensor, Long, 3/4″ NPT
Brand:Flowline
MPN:FT10-1405
SKU:FT10-1405
List Price:
$568.00
Today's Price:
$295.36
Log in for customized pricingproduct specifications
Type
Water Flow Switch
Pipe Size
2 in and up
Max Pressure
150 psi
Max Temperature
140 °F
product series specifications
Supply Voltage: 12-36 VDC
Contact Rating: 60 VA, 1A maximum
Cable Length: 10 ft (3m)
Repeatability: ±0.5% of set point @ fixed temperature
Response Time: 1-10 seconds
Cable Type:4-conductor, shielded #22 AWG
LED Indication: Flow status
Pressure: 150 psi (1034 kPa) @ 77°F (25°C), derated @ 1.7 psi (11.7 kPa) per ?C above 25?C
Set point Range: FT10: 0.04 to 3.0 fps (0.012 to 0.91 mps); GT10: 1 to 90 fps (0.3 to 27 mps)
Factory Set Point: FT10: 2 fps (0.06 mps); GT10: 10 fps (3 mps)
Set Point Adjustment: Potentiometer
Viscosity Range: FT10: 1-200 centipoise
Consumption: 70 mA maximum
Contact Type: (1) SPST relay
Contact Output: Selectable NO/NC
Ambient Temperature: -40° to 140°F (-40° to 60°C)
Sensor Rating: NEMA 4X (IP65)
Cable Jacket Materials: -1XX5: PP; -5XX5: PFA
Process Mount: 3/4" NPT
Process Temperature: 32° to 140°F (0° to 60°C)
Wetted Materials:
-1XX5: PP-Ryton®
-5XX5: PVDF
Approvals: CE
Weight: 1 lb (0.5 kg)
Warranty: 1 year
product series features
- Rugged Polypropylene-Ryton® construction for standard applications or PVDF for corrosive media
- Adjustable set point and LED for indication of flow/no-flow
- 60 VA rated contact with NO or NC output
more information & related documents
Series Description
The Flowline FT10 Series liquid flow and GT10 gas flow switches provide reliable low or no-flow detection of relatively clean, non-coating media. These switches provide a relay contact output with 1A rating and are available in short models (for 1/2 in. to 1-1/2 in. pipe sizes) and long models (for pipes greater than 2 in.). The flow switch set point may be adjusted between 0.04 to 3 fps (feet per second) velocity in liquids or 1 to 90 fps in gases. These flow switches are best applied in applications with relatively constant temperature.
Kele Description
LIQUID FLOW SWITCH, 2 IN UP, PP
Manufacturer
Flowline
FT10, GT10 Series Datasheet
