M170-200-L-N-S-E-HS-GA | Badger Meter | Flow

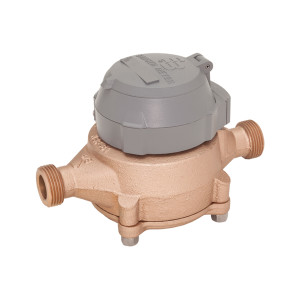

2" FLOW METER WITH 4-20MA AND PULSE REGISTER IN GALLONS
Brand:Badger Meter
MPN:M170-200-L-N-S-E-HS-GA
SKU:M170-200-L-N-S-E-HS-GA
product specifications
Accuracy
1%
Connection
Union Flange MNPT
Type
Inline Flow Meter
Pipe Size
2 in
Max Temperature
120 °F
Supply Voltage (Nominal)
24 VAC
product series specifications
Accuracy: ±1.5%
Repeatability: ±0.5%
Pressure Range: up to 150 psi
Temperature Range: 32 to 250° F
product series features
- Wide flow range
- Rugged bronze or thermoplastic housing
- Meters available up to 250° F
- Easily maintained without removing from line
- Durable components for minimal maintenance
- Wide range of compatible accessories
more information & related documents
Series Description
The Badger Meter Recordall® (RCDL) positivedisplacement meters are one of the most cost effective methods in metering industrial fluids. The RCDL meter has a simple, efficient design for high accuracy and repeatability over the entire meter flow range. Available in sizes 1/2 to 2 in. for flows up to 170 gpm, these meters are extremely rugged and reliable. Maintenance is seldom required, but if necessary, takes only a few minutes. All parts are designed and built of materials that meet your application requirements and provide an enduring and a trouble-free, precision flow meter. To complement the RCDL meter line, Badger Meter offers a complete line of accessories that includes totalizers, transmitters, rate of flow indicators and batch/process controllers.
Kele Description
2" FLOW METER WITH 4-20MA AND PULSE REGISTER IN GALLONS
Manufacturer
Badger Meter
Related Documents
HR-LCD Register Spec Page
