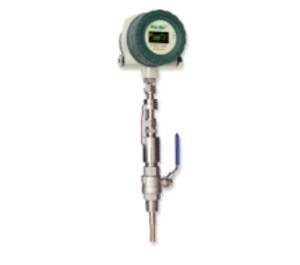

* product series image displayed

SIP-300-AC115-NG-KELE | Sage Metering | Flow

3" INLINE NATURAL GAS FLOW METER 115VAC

Brand:Sage Metering

MPN:SIP-300-AC115-NG-KELE

SKU:SIP-300-AC115-NG-KELE

List Price:

$14,130.00

Today's Price:

$7,347.60

Lead time of > 15 days. Chat with Kele experts now

product specifications

Accuracy

Type

Flow Meter

Pipe Size

3 in

Supply Voltage (Nominal)

120 VAC

product series specifications

Supply Voltage: 18-28 VDC @ 140 MA; 115/230 VAC @ 5VA

Output Signal: 4-20MA

Pulse Output: 24 VDC pulse (pulse width 50 mSEC min)

Configuration: factory calibration

Communication: BACnet MS/TP

Accuracy: +/- .5% of full scale, +/- 1% of reading

Pipe Size: 1/2" - 36"

Mounting: Insertion or Inline

Velocity Range: 0-35,000 sfpm

Repeatability: 0.2%

Resolution: 1000:1

Turndown: 100:1

Max Pressure: 500 psig

Max Temperature: 200°F

Wetted Materials: 316 Stainless Steel

Enclosure Rating: NEMA 4; Class 1, DIV. 2, groups B,C,D (24 VDC only)

Conduit Connection: 1/2" NPT

Approvals: CE

Warranty: 5 Year

product series features

Direct Mass Flow - No need for separate temperature or pressure transmitters
High Accuracy and Repeatability
Precision measurement and extraordinary repeatability
Turndown of 100 to 1 and resolution as much as 1000 to 1
Low-End Sensitivity- Measures as low as 5 SFPM (e.g., 7 SCFH in a 2 inch pipe)
Negligible Pressure Drop - Will not impede flow or waste energy
No Moving Parts - Eliminates costly bearing replacements, and prevents undetected accuracy shifts

more information & related documents

Series Description

Sage Prime HVAC Series of Thermal Mass Flow Meters measure Natural Gas flow rate and consumption in commercial, municipal, and industrial buildings, as well as college and university campuses, government facilities, hospitals, shopping centers and office buildings and complexes.

Kele Description

3" INLINE NATURAL GAS FLOW METER 115VAC

Manufacturer

Sage Metering
