SIP-250-DC24-NG-KELE | Sage Metering | Flow

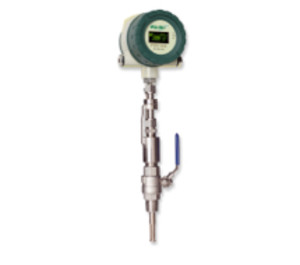

2.5" INLINE NATURAL GAS FLOW METER 24VDC
Brand:Sage Metering
MPN:SIP-250-DC24-NG-KELE
SKU:SIP-250-DC24-NG-KELE
List Price:
$13,532.00
Today's Price:
$7,036.64
Log in for customized pricingproduct specifications
Accuracy
1%
Type
Flow Meter
Pipe Size
2-1/2 in
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 18-28 VDC @ 140 MA; 115/230 VAC @ 5VA
Output Signal: 4-20MA
Pulse Output: 24 VDC pulse (pulse width 50 mSEC min)
Configuration: factory calibration
Communication: BACnet MS/TP
Accuracy: +/- .5% of full scale, +/- 1% of reading
Pipe Size: 1/2" - 36"
Mounting: Insertion or Inline
Velocity Range: 0-35,000 sfpm
Repeatability: 0.2%
Resolution: 1000:1
Turndown: 100:1
Max Pressure: 500 psig
Max Temperature: 200°F
Wetted Materials: 316 Stainless Steel
Enclosure Rating: NEMA 4; Class 1, DIV. 2, groups B,C,D (24 VDC only)
Conduit Connection: 1/2" NPT
Approvals: CE
Warranty: 5 Year
product series features
- Direct Mass Flow - No need for separate temperature or pressure transmitters
- High Accuracy and Repeatability
- Precision measurement and extraordinary repeatability
- Turndown of 100 to 1 and resolution as much as 1000 to 1
- Low-End Sensitivity- Measures as low as 5 SFPM (e.g., 7 SCFH in a 2 inch pipe)
- Negligible Pressure Drop - Will not impede flow or waste energy
- No Moving Parts - Eliminates costly bearing replacements, and prevents undetected accuracy shifts
more information & related documents
Series Description
Sage Prime HVAC Series of Thermal Mass Flow Meters measure Natural Gas flow rate and consumption in commercial, municipal, and industrial buildings, as well as college and university campuses, government facilities, hospitals, shopping centers and office buildings and complexes.
Kele Description
2.5" INLINE NATURAL GAS FLOW METER 24VDC
Manufacturer
Sage Metering
Sage Prime SIP Application Order Form
