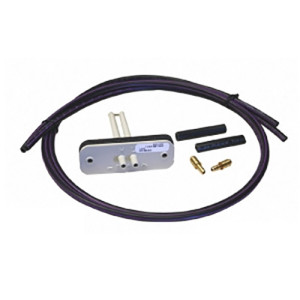

Airflow sensor kit with grey plate, white tubes and purple hose.

KIT-8001 | KMC Controls | Flow

4IN SSS-1002 FLOW SENSOR W/ 3FT OF TUBING

Brand:KMC Controls

MPN:KIT-8001

SKU:KIT-8001

List Price:

$182.00

Today's Price:

$94.64

catalog page

product series specifications

Connections: 1/4" (6.4 mm) OD connections, fit 3/8" (9.5 mm) OD polyethylene tubing

Operating Temperature: 40°F to 120°F (4°C to 49°C)

Mounting: Integral flange with foam gasket

Length:

SSS-1002 3.16" (8.0 cm) insertion (one sensing point)

SSS-1003 5.41" (13.7 cm) insertion (two sensing points)

SSS-1004 7.66" (19.4 cm) insertion (three sensing points)

SSS-1005 9.91" (25.2 cm) insertion (four sensing points)

Weight:

SSS-1002 0.04 lb (0.02 kg)

SSS-1003 0.05 lb (0.02 kg)

SSS-1004 0.06 lb (0.03 kg)

SSS-1005 0.07 lb (0.03 kg)

Approvals: RoHS

Warranty: 2 years

more information & related documents

Series Description

The SSS-1000 Series airflow sensors sense differential (velocity) pressure of variable air volume, VAV ,units and other locations in main or branch ducts. These air flow sensors are indispensable for Building Automation Systems, BAS, and HVAC applications. Four different lengths allow selection of the sensor to yield accurate readings on terminal box inlet diameters from 4 in. to 20 in. (10.2 to 51.8 cm).

Kele Description

4IN SSS-1002 FLOW SENSOR W/ 3FT OF TUBING

Manufacturer

KMC Controls
