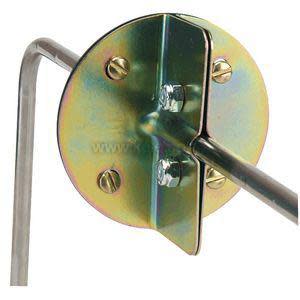

Round metal bracket with screws and an attached rod.

A-158 | Dwyer Instruments | Flow

Pitot Tube Clamp

Brand:Dwyer Instruments

MPN:A-158

SKU:A-158

List Price:

$68.00

Today's Price:

$35.36

catalog page

product series specifications

Installation: 1/4" connections for 3/8" OD tubing

Mounting: Insertion depth stamped on side of pitot tube; Split flange mounting kit for duct mounting

Material: 304 Stainless Steel

Weight: 0.02 lbs per inch

Warranty: 1 year

product series features

304 stainless steel construction
ASME design
Accurate even with up to 15 degrees misalignment
Insertion depth markings stamped on tube
Air velocity calculator, flow charts, and instructions included
1/4 in. connections for 3/8 in. OD tubing
Handy A-158 split flange for duct mounting
Tube in tube design
One year warranty

more information & related documents

Series Description

160 Series stainless steel pitot tubes are designed for use with differential pressure transmitters, manometers, or air velocity gauges to measure air flow in ducts. See Measuring Air Flow in the Technical Reference Section for complete application information. The 160 Series is designed per ASME and meets AMCA and ASHRAE standards. Insertion depth is stamped on the side of the pitot tubes, and the static pressure port is parallel to the sensing tube to allow easy alignment with air flow. A Model A-158 split flange mounting kit allows for simple, leak-free mounting of the 160 Series.

Kele Description

PITOT CLAMP

Manufacturer

Dwyer Instruments
