380220000-1202 | Badger Meter | Flow

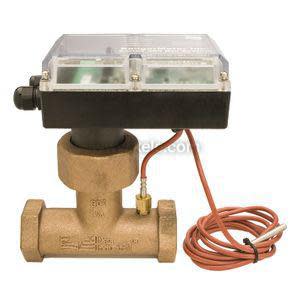

BTU Meter, 2in. Pipe, Dual Service
Brand:Badger Meter
MPN:380220000-1202
SKU:380220000-1202
List Price:
$-.--
Today's Price:
$-.--
product specifications
Accuracy
2%
Type
BTU Meter
Pipe Size
2 in
Max Temperature
260 °F
Supply Voltage (Nominal)
24 VDC
product series specifications
- Supply Voltage:
- 12-28 VAC @ 5 VA or 12-35 VDC @ 200 mA
- Supply VA:
- 5 VA
- Accuracy :
- ± 2% of range
- Repeatability:
- ±0.5%
- Supply Current:
- 200 mA maximum
- Sensor Input:
- 0.24‚Ä= diameter RTD probe, meets IEC751 Class B; 6.5' (2 m) cable for remote sensor, custom fitting for 1/8‚Ä= NPT pipe tap included
- Output:
- Scaled pulse: 10, 50, 150, 200 or 250 ms
- Velocity Range:
- 1 to 15 fps
- Wiring:
- Two cable glands, PG6 and PG9
- Wiring Terminations:
- Screw terminals inside enclosure
- Communication:
- Modbus RTU, BACnet
- Size:
- 3/4‚Ä=, 1‚Ä=, 1-1/4‚Ä=, 1-1/2‚Ä=, 2‚Ä=
- Connections:
- FNPT
- Media Temperature Range:
- :
- Cold service -4° to 140‚Ñâ (-20° to 60‚Ñâ)
- :
- Hot service 39° to 257‚Ñâ (4° to 125‚ÑÉ)
- Materials Of Construction:
- Cast bronze tee, 316 SS impeller, PEEK flow sensor, polyurethane potting material, polycarbonate housing
- Operating Temperature:
- -4° to 149‚Ñâ (-20° to 65‚ÑÉ)
- Enclosure Rating:
- NEMA 4
- Weight:
- :
- 3/4‚Ä= 6 lb (2.7 kg)
- :
- 1‚Ä= 7 lb (3.2 kg)
- :
- 1-1/4‚Ä= 8 lb (3.6 kg)
- :
- 1-1/2‚Ä= 9 lb (4.1 kg)
- :
- 2‚Ä= 13 lb (5.9.kg)
- Warranty:
- 1 year
product series features
- AC or DC power
- Field programmable width A304-1M Kit
- Scaled pulse output for direct BAS monitoring
- Two temperature sensors included
- Compact, fits within a standard 2X4 stud wall
- Compatible with potable water and water/glycol mixtures
- Modbus and BACnet, RS-485 standard
more information & related documents
Series Description
The Badger Meter 380 Series BTU meters provide an inexpensive solution to monitoring thermal energy consumption in cold or hot water systems. The integrated flow and temperature sensors along with the internal metering components make installation and commissioning easy. With on-board Modbus and BACnet communication and a compact design that will fit in a wall, the 380 Series is perfect for networking and multi-tenant billing applications. Available at Kele. Order now and have your product in 3 days with our standard shipping.
Kele Description
BTU METER,2IN PIPE,DUAL SERVICE
Manufacturer
Badger Meter
Related Documents
Series 380 Product Data Sheet
