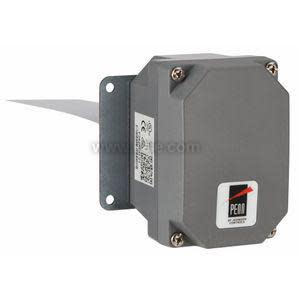

F262KDH-01C | Johnson Controls | Flow

Air Flow, Switch, Single Pole, Double Throw (SPDT), 0-2000 FPM

Brand:Johnson Controls

MPN:F262KDH-01C

SKU:F262KDH-01C

List Price:

$401.00

Today's Price:

$208.52

Lead time of > 15 days. Chat with Kele experts now

product datasheet

installation instructions

catalog page

product specifications

Type

Air Flow Switch

Housing Electrical Connection

1/2 in NPT

Max Temperature

176 °F

Velocity Range

100 - 2,000 FPM

Supply Voltage (Nominal)

120 VAC

product series specifications

Switch: SPDT

Enclosure:

UL: Type 3R

CE: IP43

Wiring Connections: Three color-coded screw terminals and one ground terminal

Conduit Connection: One 7/8" (22 mm) hole for 1/2" trade size (or PG16) conduit

Paddle Material: 0.006" (0.15 mm) stainless spring steel

Maximum Air Velocity: 2,000 FPM (10.16 m/sec)

Maximum Duct Air Temperature: 176°F (80°C)

Ambient Conditions: 32 to 104°F (0 to 40°C)

Approvals: cULus Listed: UL 60730, File E6688, FCC Compliant to CFR47, Part 15, Subpart B, Class B, Industry Canada (IC) Compliant to Canadian ICES-003, Class B limits

product series features

Type 3R (NEMA) Polycarbonate enclosure
Dependable dust-protected SPDT snap-acting PENNswitch
Large wiring space
Easily accessible range adjustment screw

more information & related documents

Series Description

The Johnson Control F262 Series airflow switch detects airflow or the absence of airflow by responding only to the velocity of air movement within a duct. The single-pole, double-throw (SPDT) control can be wired to open one circuit and close a second circuit for either signaling or interlock purposes.

Kele Description

FLOW SWITCH AIR WITH PADDLE

Manufacturer

Johnson Controls
