530 | Dwyer Instruments | Flow

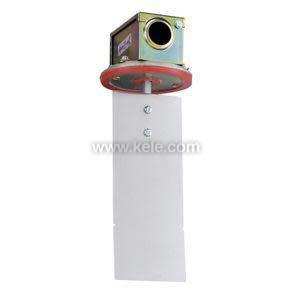

Air Flow, Switch, Single Pole, Double Throw (SPDT), 400-1600 FPM

Brand:Dwyer Instruments

MPN:530

SKU:530

List Price:

$280.00

Today's Price:

$145.60

product datasheet

installation instructions

3 in stock

product specifications

Type

Air Flow Switch

Max Temperature

180 °F

Velocity Range

400 - 1,600 FPM

Supply Voltage (Nominal)

120 VAC

product series specifications

Contact Rating: SPDT

Electrical Rating:

125 VAC: 9.8 amp full load 58.8 amp locked rotor

250 VAC: 4.9 amp full load 29.4 amp locked rotor

Pilot Rating: 470 VA at 125, 250 VAC

Resistive: 15 amp at 125, 250, or 480 VAC

Electrical Connections: Screw type terminal

Set Point Adjustment: Screw type

Conduit Connection: 7/8" conduit hole

Mounting: Horizontal duct flow

Operating Temperature: up to 180°F (82°C)

Media Compatibility: Air and non-combustible gas flow

Materials Of Construction: Stainless steel (vane)

Approvals: CE, CSA, UL File #MH7558

Weight: 1.06 lb (0.50 kg)

Warranty: 1 year

product series features

Rugged die cast zinc body
Easily field adjustable from 400-1600 FPM
Fast and simple mounting

more information & related documents

Series Description

The Dwyer 530 Series air flow switch provides excellent sensitivity and reliability for measuring air flow in ductwork. The SPDT snap acting switch can be adjusted from 400 to 1600 fpm velocity. Installation is easy, requiring only 2 screws and the vane fits 6 inch or larger ducts.

Kele Description

MODEL 530 AIR FLOW SWITCH

Manufacturer

Dwyer Instruments
