59111194 | Wika Instrument Corporation | Flow

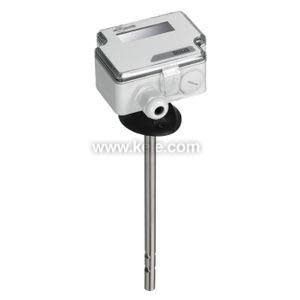

Air Velocity Transmitter With Digital Display, SPDT Relay
Brand:Wika Instrument Corporation
MPN:59111194
SKU:A2G20V03X1AAFMB
List Price:
$1,702.00
Today's Price:
$885.04
Log in for customized pricingproduct specifications
Type
Air Velocity Transmitter
Accuracy
5%
Max Temperature
122 °F
Velocity Range
0 - 3,940 FPM
product series specifications
Supply Voltage: 24VAC/VDC ± 10%
Accuracy (Air):
0 to 2 m/s: 0.1 m/s (19.6 FPM) (±5%)
0 to 10 m/s:
0 to 20 m/s: 1.0 m/s (196.2 FPM) (±5%)
Accuracy (Temperature):>1.2°F (<0.5°C)
Output Signal (Air Velocity): 0-10 V (linear to m/s), load min or 4-20 mA (linear to m/s), load max
Output Signal (Temperature): 0-10 V (linear to °F), load min 1kΩ or 4-20 mA (linear to °F), load max 400Ω
Velocity Range (Air): 2 m/s, 10 m/s, and 20 m/s range selectable by jumper
Wiring: PG-gland M16
Temperature Range: 32° to 122°F (0° to 50°C)
Operating Temperature: 32° to 122°F (0° to 50°C), max. 85% rH
Enclosure Rating: Plastic (ABS) NEMA 3
Weight: 0.5 lb (0.22 Kg)
Approvals: RoHS, WEEE
Warranty: 1 year
product series features
- Three ranges; jumper selectable: 0 to 2 m/s (390 FPM), 0 to 10m/s (1970 FPM), 0 to 20 m/s (3940 FPM)
- One temperature range 32 to 122 degrees F (0 to 50 degrees C)
- User selectable output signals: 0-10V or 4-20 mA
- Duct installation
more information & related documents
Series Description
The Wika A2G-20 Series air velocity transmitter is jumper selectable and features a separate signal out for temperature, three velocity ranges, and one temperature range. Applications include supply and exhaust fan tracking; clean room air; lab air handling and paint booth supply air. For both the air velocity (m/s) and for the temperature signals, the user can select either of two outputs (0-10V or 4-20 mA). Additional options include a digital display and a SPDT relay. The digital display shows both the measured value and the relay settings. Display is in metric.
Kele Description
AIR VELOCITY TRANS WITH DIG DISPLAY, SPDT RELAY
Manufacturer
Wika Instrument Corporation
Related Documents
A2G-20 Operating Manual
