DPFS-1-10PAK | Kele | Flow

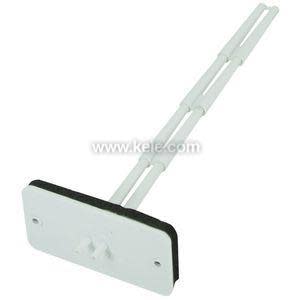

Air Flow Sensor, Probe, Plastic, 3 Length-10 Pack
Brand:Kele
MPN:DPFS-1-10PAK
SKU:DPFS-1-10PAK
List Price:
$308.58
Today's Price:
$160.46
Log in for customized pricingproduct specifications
Connection
Barbed
Process Connection
1/4 in BARB
Type
Air Flow Measuring Probe
Length
3 in
Max Temperature
250 °F
Connection Size
1/4 in
Velocity Range
200 - 6,000 FPM
product series specifications
Connections: 3/16" (0.48 cm) OD connections for 1/4" (0.64 cm) OD poly tubing
Operating Temperature: 40° to 120°F (4° to 49°C)
Mounting Flange: 4" x 2" flange with integral foam gasket and two 3/16" holes spaced 3.3" (8.4 cm) center-to-center
Materials Of Construction: ABS
Dimensions:
DPFS-1 4.0"W x 2.1"H x 3.6"L (10.2 x 5.3 x 9.1 cm)
DPFS-2 4.0"W x 2.1"H x 6.0"L (10.2 x 5.3 x 15.2 cm)
DPFS-3 4.0"W x 2.1"H x 8.3"L (10.2 x 5.3 x 21.1 cm)
DPFS-4 4.0"W x 2.1"H x 10.6"L (10.2 x 5.3 x 26.9 cm)
Weight:
DPFS-1 0.04 lb (0.02 kg)
DPFS-2 0.06 lb (0.03 kg)
DPFS-3 0.07 lb (0.032 kg)
DPFS-4 0.08 lb (0.036 kg)
Approvals: RoHS
Warranty: 2 years
product series features
- Connections sized for 1/4 in. OD poly tubing to eliminate the need for a 3/8 in. to 1/4 in. barb union adapter
- Integral foam gasket for leak-proof duct seal
- 10-packs available for economy and minimal packaging waste
more information & related documents
Series Description
The Kele DPFS Series differential pressure flow sensor is the most economical way to sense airflow velocity in VAV ducts, and other small size branch ducts in HVAC systems. The DPFS Series is available in 4 different lengths for flow sensing in duct sizes from 4 in. to 18 in. (10 to 46 cm) and can reliably sense velocities above 1000 FPM (feet/minute) or 305 MPM (meters/minute).
Kele Description
DIFF PRESS FLOW SENSOR 3.0 INSERTION 10 PAK
Manufacturer
Kele
Related Documents
DPFS Series Datasheet
