SP4839 | Kele | Enclosures

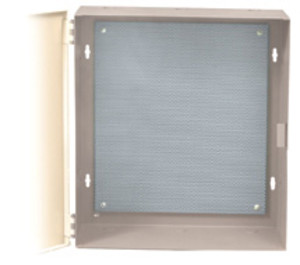

FLANGED PERF PANEL - 45.375 X 37.5
Brand:Kele
MPN:SP4839
SKU:SP4839
product specifications
Material
Steel
Type
Perf Panel
Enclosure Width
37.5 in
Enclosure Height
45.375 in
product series specifications
Type: Flat, Flanged
Size in (H x W): 8.25" x 8.25" , 8.25" x 6.25" , 10.25" x 8.25", 10.25" x 9.25", 10.25" x 10.25", 10.25" x 6.25", 12.25" x 10.25", 14.25" x 10.625", 13" x 14.5", 13" x 18.5", 16.25" x 10.25", 16.26" x 16.25", 18.25" x 10.25", 17" x 14.5", 17" x 18.5", 21" x 14.5", 21" x 18.5", 21" x 22.5", 26" x 22.5", 26" x 28.5", 32" x 22.5", 32" x 28.5", 4.25" x 4.25", 6.25" x 4.25", 6.25" x 6.25", 11" x 7", 11" x 9", 11" x 11", 15" x 11", 17" x 11", 5" x 5", 7" x 7", 15.5" x 9", 17.5" x 15.5", 23.5" x 17.5", 33.25" x 23.25", 35.5" x 23.5", 39.25" x 27.25"
product series features
- Perforated 16 gauge steel with 1/8 in. staggered holes
- Prepunched mounting holes
- Powder-coated gray finish
more information & related documents
Series Description
Kele perforated panels easily mount control components in standard control enclosures for Building Automation Systems, BAS, and HVAC applications. Panels are made from perforated 16-gauge steel and feature a gray powder-coated finish. Each panel features prepunched holes for mounting almost any device without drilling. Simply set the control components on the mounting panel and attach with #7 or #8 self-tapping screws. RET Enclosures come standard with perforated panels. Hoffman NEMA 1, NEMA 3R and NEMA 4 enclosures, H series, non-metal and C-SD Concept series enclosures featured in the Kele catalog can be ordered with a perforated panel. These panels are normally in stock. If a project requires multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand.
Kele Description
FLANGED PERF PANEL - 45.375 X 37.5
Manufacturer
Kele
