A36H30BLP | Hoffman Enclosures | Enclosures

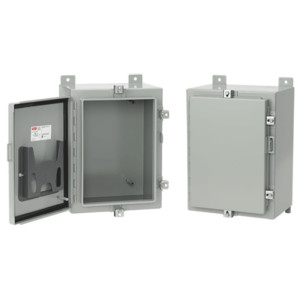

36 x 30 x 8 Hoffman Continuous Hinge Enclosure with Clamps, NEMA 4 with Panel
Brand:Hoffman Enclosures
MPN:A36H30BLP
SKU:A-36H30BLP-P
product specifications
Material
Steel
Type
Enclosure w/Clamps/Panel
Mounting Type
Hinged
NEMA Rating
NEMA 4
Enclosure Width
30 in
Enclosure Height
36 in
Enclosure Depth
8 in
product series features
- Continuously welded or ground-smooth seam, no holes or knockouts
- Seamless, watertight foam gasket for tight seal
- Hasp and staple for padlocking
- Removable door
- Data pocket included
- Collar studs provided for mounting optional subpanels
- Steel subpanels available
- Fans, heaters, louvers, and windows available
- UL File #E61997
- CSA File #LR42186, RoHs
- One-year warranty
more information & related documents
Series Description
Hoffman A-ALP and A-BLP Series NEMA 4 enclosures are designed to house electrical and pneumatic controls, instruments, and components. These enclosures provide protection from windblown dust and rain, splashing water, and hose-directed water.
Kele Description
NEMA 4 36X30X8 ENCLOSURE W/PNL
Manufacturer
Hoffman Enclosures
Related Documents
A-ALP, A-BLP Series Datasheet x
