SCE16N1206LP | Saginaw Control & Engineering | Enclosures
NEMA 1 16X12X6 ENCLOSURE
Brand:Saginaw Control & Engineering
MPN:SCE16N1206LP
SKU:SCE16N1206LP
List Price:
$497.00
Today's Price:
$258.44
Log in for customized pricingproduct specifications
Material
Steel
Mount
Hinged
Enclosure Width
12 in
Enclosure Height
16 in
Enclosure Depth
6 in
product series specifications
Dimensions in (cm): 6 x 6 x 4 (15 x 15 x 10), 8 x 6 x 4 (20 x 15 x 10), 8 x 8 x 4 (20 x 20 x10), 8 x 8 x 6 (20 x 20 x 15), 10 x 8 x 4 (25 x 20 x10), 10 x 8 x 6 (25 x 20 x15), 10 x 10 x 4 (25 x 25 x 10), 10 x 10 x 6 (25 x 25 x 15), 12 x 10 x 4 (30 x 25 x 10), 12 x 10 x 6 (30 x 25 x 15), 12 x 12 x 4 (30 x 30 x 10), 12 x 12 x 6 (30 x 30 x 15), 12 x 12 x 8 (30 x 30 x 20), 14 x 12 x 4 (36 x 30 x 10), 14 x 12 x 6 (36 x 30 x 15), 14 x 12 x 8 (36 x 30 x 20), 16 x 12 x 6 (41 x 30 x 15), 16 x 12 x 8 (41 x 30 x20), 16 x 16 x 6 (41 x 41 x 15), 16 x 16 x 8 (41 x 41 x 20), 16 x 20 x 6 (41 x 51 x 15)
Approvals:NEMA Type 1, UL Listed type 1
Meets ARRA or BAA:Yes

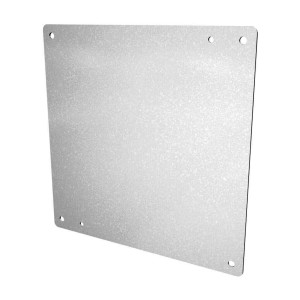

Sub Panel:SCE6N6MP, SCE86MP, SCE8N8MP, SCE10N8MP, SCE10N10MP, SCE12N10MP, SCE12N12MP, SCE14N12MP, SCE16N12MP, SCE16N16MP, SCE20N16MP
Sub Panel Dimensions in (cm):4 x 4 (10 x 10), 6 x 4 (15 x 10), 6 x 6 (15 x 15), 8 x 6 (20 x 15), 8 x 8 (20 x 20), 10 x 8 (25 x 20), 10 x 10 (25 x 25), 12 x 10 (30 x 25), 14 x 10 (36 x 25), 14 x 14 (36 x 36), 18 x 14 (46 x 36)
Weight lb (Kg):4 (1.8), 5 (2.27, 6 (2.72), 7 (3.18), 8 (3.630, 8.5 (3.86), 9 (4.1), 8 (3.63), 10 (4.54), 12 (5.45), 11 (4.99), 14 (6.36), 17 (7.72), 16 (7.26), 20 (9.09), 21 (9.53)
product series features
- NEMA 1 construction
- 16 awg and 14 awg carbon steel depending on its size
- Spot weld construction
- Standoffs provided for mounting optional panels
- Butt hinge
- Doors open 180 degrees
- Black quarter turn latches
- Latches are opened or closed with a screwdriver
- Ground stud on door
- Mounting holes in back of enclosure
- Subpanel mounting hardware
- ANSI-61 gray powder coat finish (white powder-coated sub panel)
- UL File #E69392
more information & related documents
Series Description
The Saginaw SCE Series small enclosures are designed to house electrical controls, instruments and components in areas that do not require oil, water, and dust tight protection.
Kele Description
NEMA 1 16X12X6 ENCLOSURE
Manufacturer
Saginaw Control & Engineering
