SC181812P | Hoffman Enclosures | Enclosures

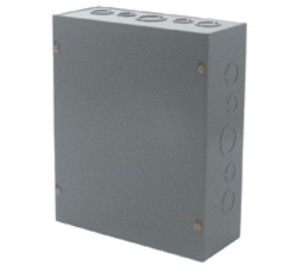

NEMA 1 18X18X12 SCREW COVER ENC W/PERF
Brand:Hoffman Enclosures
MPN:SC181812P
SKU:SC181812P
List Price:
$654.00
Today's Price:
$340.08
Log in for customized pricingproduct specifications
Type
Enclosure with Perf Panel
Material
Steel
Enclosure Width
18 in
Enclosure Height
18 in
Enclosure Depth
12 in
Enclosure Rating
NEMA 1
Mount
Screw
product series features
- 16-gauge steel construction to meet NEMA 1
- Flat, removable covers fastened with plated steel screws
- Unique keyhole screw slots in cover for removal without extracting the screws
- Mounting holes on back of enclosure
- Various sizes of easily removable knockouts on all sides
- ANSI 61 gray polyester-powder finish inside and out over phosphatized surfaces
- Available with optional perf panel
- UL File #E27525
- CSA File #LL42184, RoHs
- One-year warranty
more information & related documents
Series Description
The SC Series screw cover boxes serve as surface-mounted junction boxes or switch boxes and are ideal in building automation systems, BAS, and HVAC applications. With the addition of a field-installed perforated subpanel, a screw cover box can also house controls and instruments in areas that do not require oil tight and dust-tight ratings.\n
Kele Description
NEMA 1 18X18X12 SCREW COVER ENC W/PERF
Manufacturer
Hoffman Enclosures
