ASE16x12x6P | Hoffman Enclosures | Enclosures

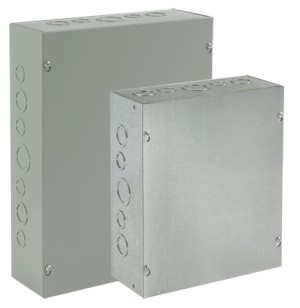

16 x 12 x 6 NEMA 1 Screw Cover Enclosure with Perf Panel
Brand:Hoffman Enclosures
MPN:ASE16x12x6P
SKU:SC16126P
2 in stock
product specifications
Enclosure Rating
NEMA 1
Material
Steel
Mount
Screw
Type
Enclosure w/Perf
Enclosure Width
12 in
Enclosure Height
16 in
Enclosure Depth
6 in
product series features
- 16-gauge steel construction to meet NEMA 1
- Flat, removable covers fastened with plated steel screws
- Unique keyhole screw slots in cover for removal without extracting the screws
- Mounting holes on back of enclosure
- Various sizes of easily removable knockouts on all sides
- ANSI 61 gray polyester-powder finish inside and out over phosphatized surfaces
- Available with optional perf panel
- UL File #E27525
- CSA File #LL42184, RoHs
- One-year warranty
more information & related documents
Series Description
The SC Series screw cover boxes serve as surface-mounted junction boxes or switch boxes and are ideal in building automation systems, BAS, and HVAC applications. With the addition of a field-installed perforated subpanel, a screw cover box can also house controls and instruments in areas that do not require oil tight and dust-tight ratings.\n
Kele Description
NEMA 1 16X12X6 SCREW ENCL W/PERF
Manufacturer
Hoffman Enclosures
